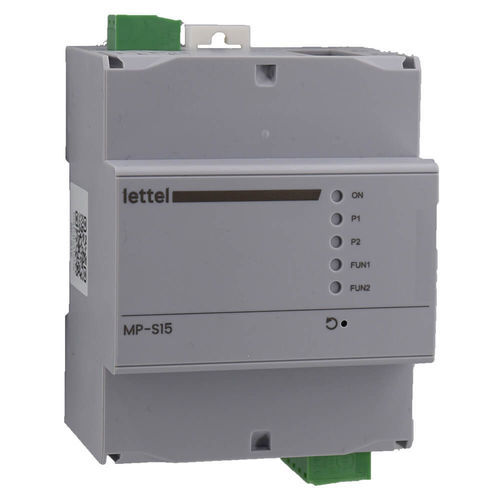

Communication gateway MP-S15

LANWiFiEthernet

The MP-S15 communication gateway is equipped with 2 RS485 interfaces and 2 Ethernet RJ45 ports. It can be equipped with an additional communication protocol, wired or radio: - Communication Gateway: Collects data from 64 Modbus communicating devices on 2 RS485 loops and exports them in Modbus TCP/IP on 2 RJ45 Ethernet ports. The integrated web server allows programming the gateway and consulting data from any internet browser. - Electrical: Power supply 220V (+/- 20%) 50/60Hz. - Communication Interfaces: 2 RS485 ports 2x RJ45 Ethernet (IEEE802.3) Optional extensions: LORA, WIFI. Modbus RTU frame format: transmission speed 1200 to 38400 bps, formats N.8.1, O.8.1, N.8.2, E.8.1. - Physical: 72 mm wide housing, DIN rail mountable in an electrical cabinet. - Software Interface: The gateway integrates a web server that allows reading data and recording them at an adjustable sampling rate. Recorded data can be exported in .csv format. - Compliance: CE, RoHs, Reach - Applicable Standards: IEC61004-4-2-III/3-III/4-III/5-IV - Data Transfer: The MP-S15 gateway allows transferring data from any type of electrical meters or measuring centers communicating in RS485 Modbus over a LAN Ethernet network. - Associated Measuring Instruments: Enerliz measuring centers, Enerpro electrical meters. Technical Specifications: - 2 RS485 interfaces - 2 Ethernet RJ45 ports (IEEE802.3) - Optional extensions: LORA, WIFI - Power supply: 220V (+/- 20%) 50/60Hz - Modbus RTU frame format: 1200 to 38400 bps, N.8.1, O.8.1, N.8.2, E.8.1 - 72 mm wide housing, DIN rail mount - Integrated web server, .csv export - Compliance: CE, RoHs, Reach - Standard: IEC61004-4-2-III/3-III/4-III/5-IV
