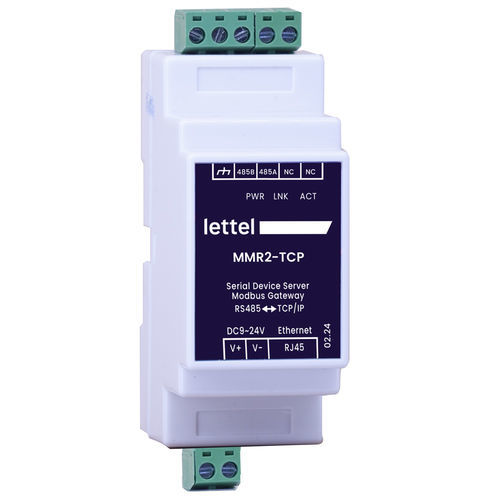

Communication gateway MMR2-TCP

TCPEthernetRS-485

The MMR2-TCP module allows the collection of data from up to 32 devices connected via Modbus RTU on an RS485 loop and exports them in Modbus TCP/IP via RJ45 Ethernet port. - Communication: 1 RS485 port and 1 RJ45 port. Transmission speed: 300 to 115200 bps. Fixed or random IP address (DHCP). Settings via integrated web server. - Electrical: Power supply: 9 to 24V DC. Requires the addition of a stabilized power supply AMP1-15-12 or AMP1-15-24. - Physical: DIN rail mountable case, width 2 modules. Connection via removable screw terminals. - Compliance: CE, RoHs, Reach - Associated products: Enerliz measuring centers, Enerpro electric meters. - Data transfer: The MMR2-TCP gateway allows you to transfer to a LAN Ethernet network the data from any type of electric meters or measuring centers communicating in RS485 Modbus. - Technical specifications: Supports up to 32 Modbus RTU devices on RS485 Exports data in Modbus TCP/IP via RJ45 Ethernet Transmission speed: 300 to 115200 bps Configurable IP address (fixed or DHCP) Settings via integrated web server Power supply: 9 to 24V DC (external stabilized power supply required) DIN rail mounting, 2 modules wide Removable screw terminal connections Compliance: CE, RoHs, Reach
