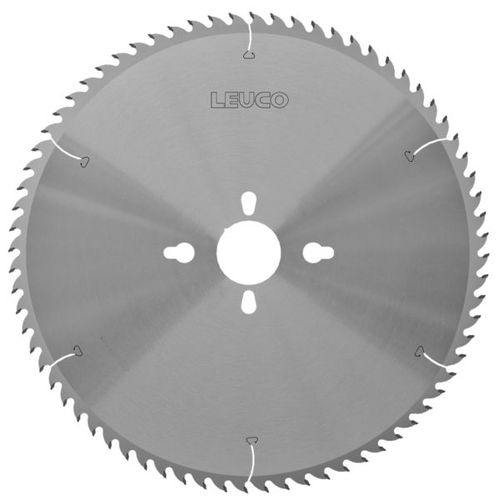

Cutting saw blade TR-F Ktungsten carbidefor compositesplastic
Add to favorites
Compare this product
Characteristics
- Type
- cutting
- Blade material
- tungsten carbide
- Cut material
- plastic, for composites
- Circular saw blade diameter
350 mm, 380 mm, 400 mm, 450 mm, 460 mm
(14 in, 15 in, 16 in, 18 in, 18 in)- Bore
30 mm, 60 mm
(1.18 in, 2.36 in)- Blade thickness
3.2 mm
(0.13 in)- Number of teeth
72 unit
- Cutting angle
10 °, 15 °
Description
horizontal panel sizing saws
for micro cuts in new materials (special surfaces) and plastics
Design
vibration and noise damping ornaments
additional expansion slots
tooth configuration: TR-F K
cutting material: HW HL Board 04 plus
Advantages
excellent cutting quality in "anti fingerprint" materials and for conventional plastics
no scoring on the cutting surface due to convex tooth sides
no flares on the surface of sensible materials
Notes
Attention: when assigning the appropriate scoring saw blades, please take into account the cutting width reduction of 4 mm!
NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9.5/46.5 + 2/7/42
NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120
