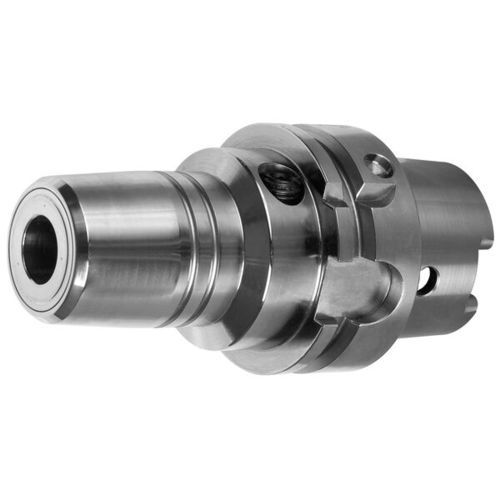

DIN collet chuck CS011 Hydro expansion chuck HSK50A and HSK 63A
HSK-Alocking clampwith cylindrical shank

DIN collet chuck - CS011 Hydro expansion chuck HSK50A and HSK 63A - LEUCO Ledermann GmbH & Co. KG - HSK-A / locking clamp / with cylindrical shank
DIN collet chuck - CS011 Hydro expansion chuck HSK50A and HSK 63A - LEUCO Ledermann GmbH & Co. KG - HSK-A / locking clamp / with cylindrical shank
Add to favorites
Compare this product

Characteristics

Machine mount
HSK-A, DIN
Clamping method
locking clamp, with cylindrical shank
Application
milling, drilling, tapping, thread, boring, for finishing
Other characteristics
high-precision, high-speed, for CNC lathes, cutting, for woodworking, for metalworking, high-accuracy, anti-corrosion, anti-vibration
Clamping range

Min.: 6 mm
(0.24 in)

Max.: 12 mm
(0.47 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 30,000 rpm
(188,496 rad.min-1)

Description

I For precise clamping of shank-type tools with cylindrical shank. I Minimization of setup times thanks to easy and quick tool change. I Increased process safety, long edge life and high machining quality thanks to very high concentricity and repeating accuracy. I Vibration-absorbing due to hydraulic clamping.
