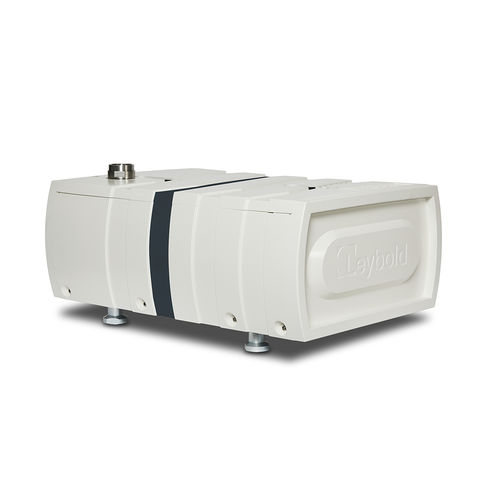

Screw vacuum pump VARODRY VD100
drysingle-stage

screw vacuum pump
screw vacuum pump
screw vacuum pump
screw vacuum pump
screw vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
screw
Lubrication
dry
Number of stages
single-stage
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

65 m³/h
(2,295.45 ft³/h)

Description

Max. permissible inlet pressure: - 1,050 mbar Max. permissible outlet pressure (relative to ambient): - 200 mbar Pumping speed: - 65 m3/h Ultimate pressure with gas ballast: - < 0.1 mbar Ultimate pressure without gas ballast: - < 0.01 mbar Eliminate process inefficiencies cause by vacuum. The new VARODRY vacuum pump series is designed and produced by Leybold, in Germany specifically for industrial processes. Give yourself one less headache, with VARODRY vacuum can be easy, efficient, reliable and dry. Efficient pumping The VARODRY rotor design is optimized to provide best-in-class efficiency. The VARODRY is optimized for the challenges found in many industrial applications: Repeated and fast cycling: The VARODRY offers very quick pump down. The pump tolerates atmospheric pressure shocks and repeated evacuation cycles. Dust / particle handling: The pumps screw principle offers best performance to handle fine, dry dust particles without wear. A wide portfolio of dust filters are available if big dust amounts need to be handled. Vapor handling: Due to its optimized temperature profile and the built-in gas-ballast, the VARODRY offers a high vapor tolerance, avoiding internal condensation and corrosion. Reactive gas handling: Often vapors (e.g. hydrocarbons) tend to react inside hot dry pumps and build-up internal coatings which can cause pump seizing. The moderate temperatures inside the VARODRY virtually eliminate this risk. Liquid handling: The VARODRY can handle droplets or even liquid slugs as the liquids can flow freely out of the pump.
