4-axis CNC machining center PHOENIX
verticalfor steelfor PVC

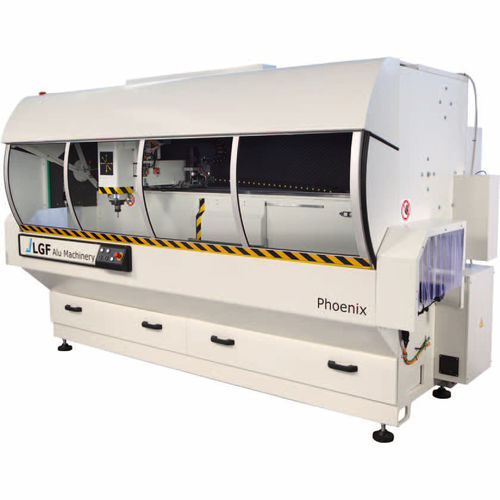

4-axis CNC machining center - PHOENIX - LGF MACCHINE SRL - vertical / for steel / for PVC
4-axis CNC machining center - PHOENIX - LGF MACCHINE SRL - vertical / for steel / for PVC
Add to favorites
Compare this product

Characteristics

Number of axes
4-axis
Spindle orientation
vertical
Machined material
for steel, for PVC
Applications
for aluminum profiles
X travel

2,500 mm, 3,000 mm, 4,000 mm
(98.43 in, 118.11 in, 157.48 in)

Y travel

400 mm
(15.75 in)

Z travel

300 mm
(11.81 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

5.5 kW
(7.48 hp)

Overall length

378 cm, 428 cm, 633 cm
(148.8 in, 168.5 in, 249.2 in)

Overall width

194 cm
(76.4 in)

Overall height

213 cm
(83.9 in)

Description

• - Solid electro-welded steel construction • Axis displacement on linear guides • Rotation of the work bench at 90°, 0°, -90° • Industrial PC control system with LGF dedicated software • Windows Interface • 4 controlled axis • 4 adjustable clamps with manual traversing • X axis lenghts 2500/3000/4000 mm • Y axis stroke 400 mm • Z axis stroke 300 mm • Working tollerance : +/- 0,2 mm • X axis travelling speed 60 mt/min. • Y axis travelling speed 20 mt/min. • Z axis travelling speed 20 mt/min. • Automatic tools changer with 7 lodgings • Possibility to work bars longer than the machine • Working pressure 7 bar • Overall dimensions 378/428/633x194x213 cm • Weight 2085/2500/3100 Kg.
