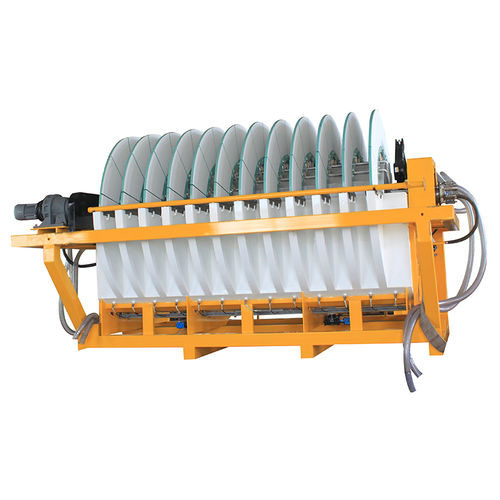

Vacuum filtration system BY-18
for liquidsautomatichigh-performance

vacuum filtration system
vacuum filtration system
vacuum filtration system
vacuum filtration system
vacuum filtration system
vacuum filtration system
Add to favorites
Compare this product


Characteristics

Technology
vacuum
Designed for
for liquids
Other characteristics
automatic, high-performance, self-cleaning, backwash
Flow

Max.: 80 m³/s
(2,825.173 ft³/s)

Min.: 3 m³/s
(105.944 ft³/s)

Filtration size

Max.: 80 µm

Min.: 3 µm

Description

A Ceramic vacuum disc filter is designed to separate liquids from solids for dewatering purposes. The device consists of a rotator, distributor, agitator, scraper, slurry tank, reducer of the main shaft, vacuum pump, filter, ultrasonic equipment, waterway system, electronic control system.In the industry ,filtering means separating solids from liquids through a medium and realization the process of solid-liquid separation. Application: The filter can be widely used in non-ferrous mental, metallurgy, chemical, pharmaceutical, food, environmental protection, thermal power plant, coal treatment, sewage treatment and other industries. Features: Model: BY-18 Brand: BOYUN Place of origin: China Main size(L*W*H):3680 * 2650 * 2460 Weight(T):4.15 tons Filter plate number : 72 pieces Disk number: 6 circles Filtering area of each circle: 3m2 Installed power: 14.4 KW Operating power :10.2 KW Warranty: 1 Year After-sales service: Field installation, commissioning and training Package type: Wood case or up to the customer's demands Certificates: ISO9001 : 2008 Advantages: • Energy saving and high efficiency, higher processing capacity; • Automatic control, automatic feeding, automatic cleaning, highly automation, lower labor cost; • Firmly and durable structure: more than 10 years service life; • Higher quality of products and lower cost of transportation; • Obvious environmental protection effect: reusable, reduction of emissions, conforming to current trend of clean production and environmental protection; Working time 6-12 H, cleaning time no less than 1 H, the vacuum pressure shall not be less than -0.08MPa , the water pressure no less than 0.4MPa, the pH control in 2-4.
