For this model of controller, we applies with micro-computer for controlling, and installs with KV preset, automatic aging, failure self-checking, timing&untime setting(the range of fixed time is 1-98 minutes), running status displaying, safety interlock, protect functions for whole system.
In this type of control unit also includes controlling for all running of mechanical transmission system and three changeable controlling of radiography system, optical shutter door’s controlling.
Real time radiography system:

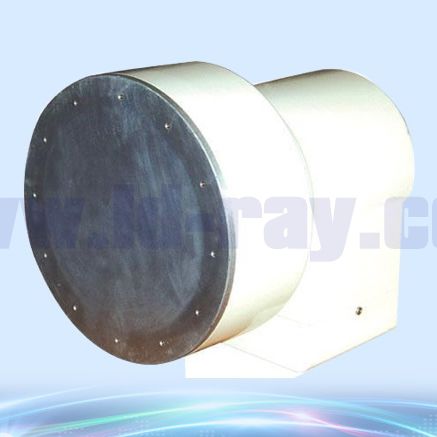

6inches image intensifier:
Input image dimension:150mm
Output image dimension:20mm
Center limited resolution:54lp/cm
CCD camera system:
Configuration: parallel light lens, changeable lens, CCD camera, power supply, transmission cable
Parameters:
Analog CCD camera:
Pixel: 752×582
Current: +12V
Transmission cable: ≤60m
Dynamic range: 8bit
Digital CCD camera:
Pixel: 1024×1024
Current: +12V
Transmission cable: ≤15m
Dynamic range: 10-12bit
Monitor:
14″monitor: 1000line
17″monitor: 1000line
Computer image processing system:
Configuration:
Industrial controlling computer(brand unit)
Monitor
Image collect board
Netcard
Expend USB interface
Laser printer
Image processing software
Disc-driving machine
For hardware configuration, we applies with newest devices in the market, and except three months guarantee for disc-driving machine, for other parts we provides one year guarantee.
Technical targets:
Standard PAL,NTSC black-white vedio signal inputting;
Collect speed: 25frame/s for PAL; 30frame/s for NTSC
Max resolution of image collection: PAL---768×576;NTSC---640×480;
Software such as lightness, contrast ratio can be adjust continuously;
