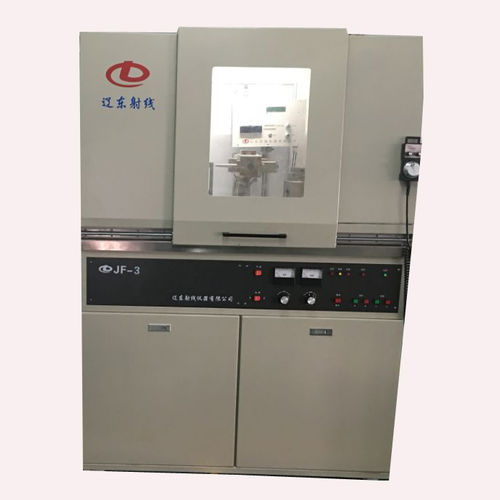

Solids analyzer JF-3

benchtopautomaticX-ray fluorescence

Laue camera and high precision definite direction Purpose: Take pictures:utilize back shoot Lao E method to take pictures.The film is installed between the crystal and the radial source. the incidence beams pass through the eyelet on the film.Record for backward diffraction beams,use the diffraction beam direction to measure the unknown shape and size of the crystal cell and to measure the crystal tropism and to assess the perfect crystal.Definite direction:carry on the precision to measure the angle and definite direction to the crystal material. Use x-ray to pass the prepositive monochrome machine,the diffraction beam is monochromatized and then irradiate on the sample.accord with the formula:nλ=2dsinθdiffraction and received by count tube to enlarge.show the strength by the meter and read the accurate angle value by the clinometer. Main parameter: Power supply AC220V 50HZ 30A Power 2KW Target material Cu(choose others) Tube electric voltage 30KV(consecution adjustable) Tube current 50mA(consecution adjustable) Cooling circulating water, refrigeration water tank Safety lead organic glass shield Take a picture Camera back reflection Laue camera Use mode automatic timing(count down) Timing (1second—9999seconds) Definite direction Mode high precision(prepositive monochrome machine) Scopes of the angle θ10°—50°，2θ10°—100° Display digital display degree minute second Display precision 1″ Light gate: light gate foot pushed electromagnetism Resolution more or less15″(excelled)
