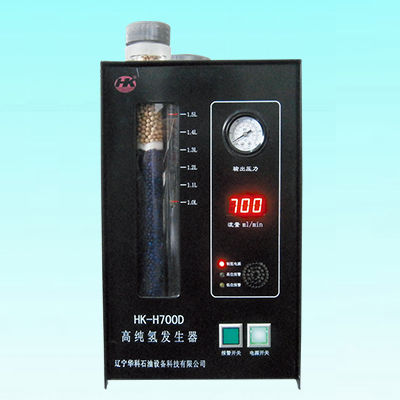

High-purity hydrogen generator HK-H700D

membrane

HK-H700D High Purity Hydrogen Generator (Patent Product) OverView HK-H700D High Purity Hydrogen Generator adopts the most advanced membrane séparation technology, the pressure control System consisting of infrared photoelectric feedback device and switching power supply and high and low alarm control System can automatically adjust the amount of hydrogen generated according to the output requirements, and maintain the stability of output flow and pressure. It is fully compatible with any gaschromatograph produced by any manufacturer. It can also be used as a comprehensive mud logging instrument. Patent number: ZL 2016 2 0108915.9 Features 1. - Two grades overvoltage protection 2. - Fluid backflow device 3.8igflow rate, high pressure and digital display of the hydrogen generating volume Technical Parameters l.Rated voltage: AC 220±10% 50Hz 2.Output flow rate: 0~700ml/min 3.0utput pressure: 0~0.4MPa 4. - Hydrogen purity: >99.999% 5. - Max power: 250W ô.Ambient requirements: Temperature:5'v40’C, Humidity£85%, avoid grievous dust pollution 7.Dimension: 210x440x360 (mm), 16kg
