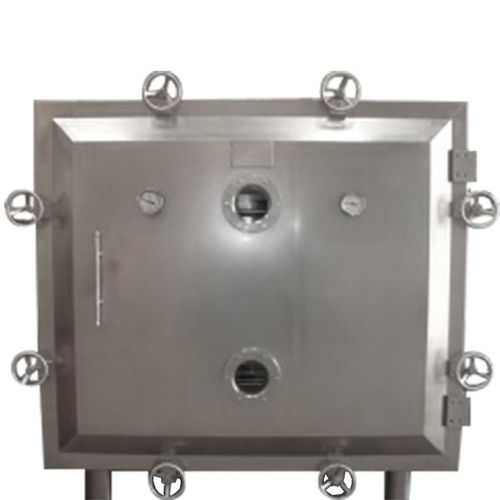

Name: BSZG-15 Square Vacuum dryer
It is suitable for drying heat sensitive raw materials that can decompose and polymerize and metamorphose at high temperature, it is wide used in pharmaceutical, chemical, food stuff an electronic Indus true.
Introduce: It is suitable for drying heat sensitive raw materials that can decompose and polymerize and metamorphose at high temperature, it is wide used in pharmaceutical, chemical, food stuff an electronic Indus true.
Principle of work:
It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying, if use vacuum to take air and humidity out the dry speed will be faster.
Main technical data:
Model: BSZG-15 No-standard model
Exteriro size of chamber: 1600×1600×1750 mm (LXWXH)
Interiorsize of chamber: 1220×1380×1230 mm (LXWXH)
Temperature range: 50-120 ℃
Steam pressure: 0.2-0.6 MPa
Baking tray: 32 pieces(640×460×45mm)
distance of baking shelf: 120mm
layers for baking shelf: 8 layers
heating model: Steam heating
Technical parameters:
Description specification
BSZG-15
Internal size of drying cabinet (mm)
1500X1400X1220
External size of drying cabinet (mm)
1513X1924X2060
Layers of drying holder
8
Size of drying pallet (mm)
460x640x45
Numbers of drying pallet
32
Pressure inside the drying pipe (Mpa)
<0.784
Temperature of the drying holder (℃)
<150
Unload vacuum inside (Mpa)
-0.09~0.096
Model and power of the vacuum pump when condenser is not equipped (KW)
SK-3 7.5KW
Weight of drying cabinet (kg)
2100
