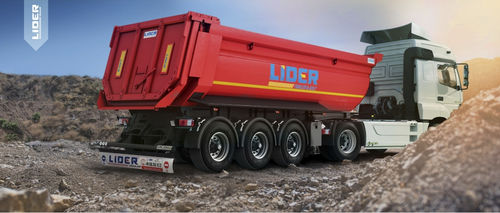

Dump semi-trailer

3-axlewith braking

Lider Trailer manufacture the best types of dumper semi trailer which possess a high-quality practical system that has been designed according to the harsh working standards. Dumper semi trailer is manufactured with the latest technological systems that contribute to raising the quality of the trailer. Our company is keen on choosing the best raw materials for manufacture such as steel, axles, braking systems ... that help easily deal with the dumper semi trailer and give more stability when working. · Production in different capacities and sizes · With different steel types ( Hardox 450 – Domex –ST 52) · High capacity Cylinder systems · Special design according to customer demands · Heavy capacity telescopic cylinders 5 and 6 Stroke options · With different types of Disc or Drum type axles •Axles : 3 × 12 – 16 Tons 4 × 12 – 16 Tons •Wheels : 385/65 R 22,5 (Single ) 12 R 22,5 (Double ) •Air Suspension 35 – 55 Tons capacity • Mechanic Suspension 50 – 80 Tons capacity •Tare Weight ±%3 : 6800 Kg -11000 Kg •External Length : 8732 – 12 000 mm •Total Width : 2500 mm •Height : 3213- 3600 mm •Volume : 24m³ - 55m³ •EBS Brake System •ABS Brake System •Colors : Costumers Request RAL Codes .
