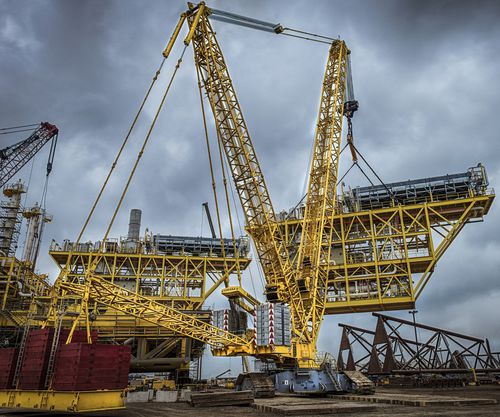

Crawler crane LR 11350

latticefor constructionfor offshore applications

versatility with high lifting capacity. • Into the sky: The LR 11350 can deliver hook heights of up to 722 ft / 220 m. • Easy to transport: All transport weights with a maximum of 99,200 lb / 45 t and a transport width of 11' 6" / 3.50 m. • Versatile: A wide range of boom versions means there is a system suitable for every requirement. • Moving with a load: The ballast trailer enables the crane to move with a load on the hook without any problems. • Time-saving: The VarioTray detachable ballast system saves the need for tiresome stacking and unstacking on a job. • Infinite power: PowerBoom comes into its own when a simple boom reaches its limits. It makes enormous increases in lifting capacity possible, particularly on the luffing jib. The LR 11350 crawler crane sets the standard in the crane class over 1000 tonnes (1200 USt). It delivers outstanding load capacities over its entire operating range. This crane is particularly suitable for universal use in offshore handling as it can operate with and without PowerBoom, handling high part weights. Its design principle means that the crane components can be transported easily and at low cost and its set-up times are short. This means that no one part is wider than 3.50 metres (11.5 ft) or heavier than 45 tonnes (99,200 lb). With a wide range of boom systems the LR 11350 can be used flexibly with or without a derrick system. A ballast trailer and suspended ballast are available for the ballasting system. Its range of features is rounded off by high safety standards and great ease of operation.
