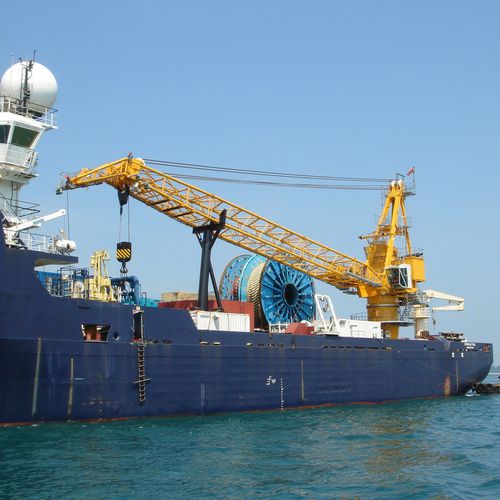

Crane for offshore applications BOS 2600

bargetop-slewinglifting

With a maximum outreach of up to 60 metres and a lifting capacity of up to 100 tonnes, the BOS 2600 is suitable for dynamic lifting when supplying, for example, platforms, jack-ups or drill rigs, as well as on-board working. A-frame The rope luffing is effected in a so-called A-frame design. This way the crane achieves optimal stability and reliability. Lighting Operation without a loss of productivity is also possible when it is dark. Powerful LEDs and fluorescent lamps at the boom, slewing platform and the machine housing provide optimal lighting of the work environment and for inspecting the crane. Diesel-Hydraulic Drive variants for operating the hydraulic system of the crane with integrated tank system, electric or hydraulic start system. Diesel tank The diesel tank is located in the machine housing and is easily accessible for refilling. Slewing platform The slewing platform is the basic element of the crane. In addition to the machine housing, it also houses the cab, the A-frame, as well as luffing winch. Electric-Hydraulic Drive variants for operating the hydraulic system of the crane with integrated start-up system for limiting the starting current values.
