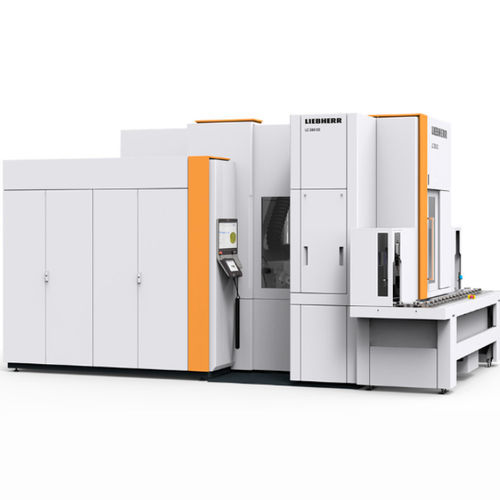

CNC gear-hobbing machine 80 series

The new LC 180/280 machine platform allows for a modular design. By doing this, many different technological applications or customer-specific requirements can be implemented. Machine concept The new LC 180 / 280 machine platform allows for a modular design. This means many different technological applications or customer-specific requirements can be implemented. Liebherr gear hobbing machines are optimally customized to the requirements of universal usability. The high-performance gear hobbing machines are productive and manufacture in the highest quality with maximum availability. Optimized base frame rigidity thanks to FEM simulation Thermosymmetric machine design and integrated temperature compensation ensure consistent high quality Fundamentally optimized chip removal system High flexibility for various processes: Gears, shafts, worm gears Cluster gears Skive hobbing/finish cutting Position dependency Milling of special profiles Wet and dry machining Hook-ready machine with a low space requirement, suitable for easy transfer Axes X1: Radial movement column slide | B1: Rotary movement tool | Z4: Vertical travel counter column | V1: Tangential movement tool | C2: Rotary movement workpiece| C3: Rotary movement ringloader| Z1: Axial travel cutter head | A1: Swivel movement tool Your entry point into gear cutting The LC 180 / 280 is the perfect way for getting started with gear cutting. It offers maximum flexibility thanks to a diverse range of workpieces, well-known Liebherr quality, and low machine investment.
