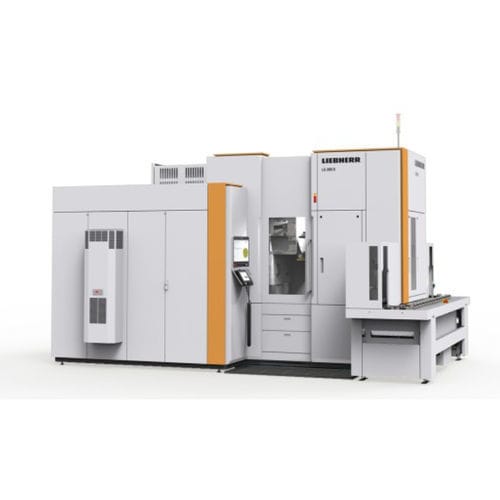

CNC gear-shaping machine LS 80 - 280 F/E

vertical

Our Liebherr gear shaping machines are optimally adapted to the diverse requirements of universal applications. Their axially movable shaping head slide enables extremely efficient production of very diverse components with minimum setup time. The variable machining position enables optimum alignment of the shaping head depending on the clamping fixture used. Thanks to the variable machining positions, multiple gearings can be machined within a single clamping fixture. Our machine concept is suitable for wet machining as well as dry machining. For economical and efficient production, we recommend the ringloader concept, which enables fast loading and unloading of workpieces. In addition, Liebherr offers various external automation systems such as a plastic chain conveyor and chain conveyor storage mounted directly on the machine. Quick summary of the highlights of the gear shaping machines Vertically movable shaping head SK 40 tool interface Small footprint Available with mechanical helical guide (SH70M) or electronic helical guide (SH70E) Highly efficient automation system Optional: twin-track cam system, swiveling machine column, automatic stroke length adjustment Conclusion: The perfect machine for small and medium-sized workpieces. Your advantages when gear shaping with Liebherr Versatile machining of external and internal gears Zero-backlash workpiece drive for optimum quality Thermosymmetric design for the highest quality and process requirements High productivity with up to 1,500 double strokes per minute Maximum ease of setup thanks to NC axes, clamping fixture quick change and gripper quick change system Machine, tool and process from a single source
