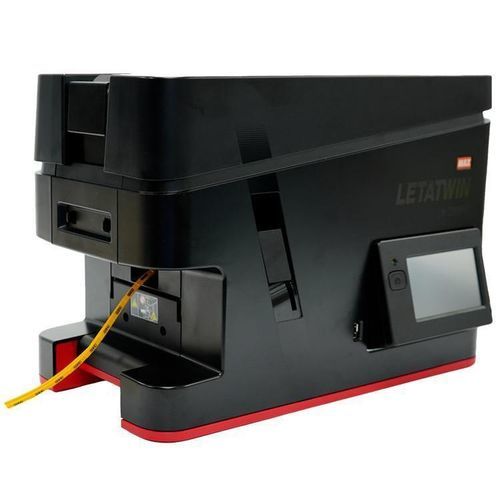

Thermal transfer printer LM-3000PRO

desktophigh-resolutionwireless

Overview
The LETATWIN LM-3000PRO is an industrial cable marker printer engineered for fast on-demand cable identification and control-panel labelling. It delivers 300 DPI thermal-transfer printing at up to 80 mm/s, supports a wide range of consumables and integrates a built-in cutter and patented Grip Sleeve for secure, visible cable marking.

Applications

• Cable identification
• Terminal block marking
• Panel and equipment ID labelling
• Heat-shrink tube printing and application

Key features

• On-demand custom cable markings with variable sizes
• UK training and support
• 300 DPI print resolution for clear small-font legibility
• High-speed printing: 80 mm/sec
• Auto half-cut and manual full-cut with adjustable depth
• Double-sided print option (vertical / reverse)
• Broad consumable compatibility (tubes, sleeves, tags, plates)
• Connectivity: USB, wired LAN, wireless LAN (2.4 GHz)

Consumables

• Grip Sleeve (patented)
• Grip Tube
• Cable Tags
• Conductor Markers
• Heat Shrink tubes
• Terminal Block Slide plates
• PVC tube
• Self-Adhesive Tape
• ID Plates and Marker Strips

Included software LETATWIN PC EDITOR PRO: connect via USB, wired LAN or wireless LAN. Import CSV or copy/paste from Excel. The editor supports sequential numbering, batch edits and streamlined data transfer for rapid setup and high-volume printing.

Technical specifications

• Print resolution: 300 DPI
• Material width: 36 mm
• Maximum print width: 19 mm
• Print speed: 80 mm/s
• Print technology: Thermal transfer
• Cutting function: Auto half cut, manual full cut (adjustable depth)
• Maximum output ranges: Grip Sleeves 100 m; Tubes 100 m; Tape 5 m; Marker Strips 5 m; Blocker Markers 1,000; ID Plate 20 m
• Supported OS: Windows 11
• Print options: Double sided, Vertical / Reverse
• Weight: 11 kg (excluding accessories and power cord)
• Dimensions: 427 (W) x 256 (D) x 301 (H) mm
• Connectivity: USB, wired LAN, wireless LAN (IEEE802.11 b/g/n) (n = 2.4 GHz only)
• Power supply: AC 100-240 V, 50/60 Hz
• Included: Ink Ribbon (LM-IR3015B), Ink Ribbon Cassette, Reel Stand, Quick reference manual, Safety guidance, Platen rollers (3 types), Attachments for block markers, various tube diameters and ID plates, Power cable, USB cables, Manual guide, Software license
