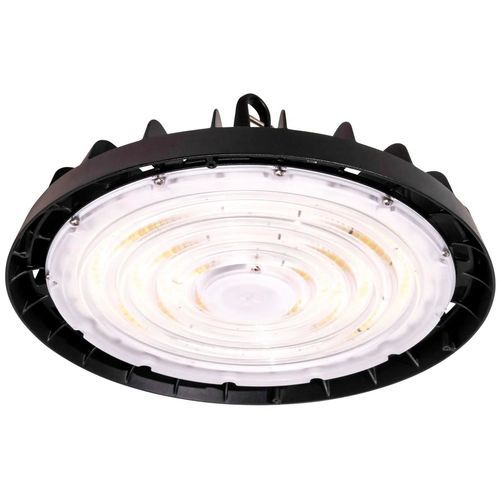

High bay light LLS-M-HB6-200A-CC

LEDfor shopfor warehouse

Product Overview
This adjustable UFO high bay offers selectable 100W, 150W or 200W output in a compact round fixture designed for high-ceiling indoor environments. Wattage, color temperature and optics are combined in a single 120–277V unit to simplify inventory and installation.

Core Performance and Output
Delivering 15000, 22500 or 30000 lumens at 150 lm/W, the fixture is specified to replace 250W or 400W metal halide lamps. Selectable color temperatures: 3500K, 4000K and 5000K. CRI 80+. Supports 0–10V dimming for integration with standard commercial controls.

Adjustability and Control Options
Onboard selectors allow adjustment of wattage, color temperature and beam optics. Standard beam angles: 60°, 90° and 110° to optimize light distribution for aisles, work zones or open floor areas. Compatible with 0–10V dimmers and optional remote motion sensor controls.

Longevity and Reliability
Rated life 50,000 hours. Operating temperature range -22°F to 122°F. Integrated 6kV surge protection reduces risk from transient events in industrial power environments.

Build Quality and Physical Characteristics
Black die-cast aluminum housing with IP65 and IK08 ratings. Polycarbonate lens protects the optical assembly. Dimensions: 11 in W x 5 in H. Weight: 5.4 lbs. Hook mounting standard; pendant mounting available as an option.

Where This Product Fits Best

• Warehouse lighting
• Manufacturing facility lighting
• Distribution center lighting
• Gymnasium lighting
• Aircraft hangar lighting
• Indoor sports facility lighting
• Commercial shop lighting

Safety, Certifications, and Warranty
UL Listed and DLC Premium qualified. Five-year warranty for commercial installations.

Key Features / Table
Brand: LED Lighting Supply
Watts: 100 | 150 | 200
Lumens: 15000 | 22500 | 30000
Lumens per Watt: 150
Replaces: 250 or 400 Watt Metal Halide
Voltage: 120–277V
Color Temperature: 3500K | 4000K | 5000K
CRI: 80+
Dimming: 0–10V
Beam Angles (Std): 60° | 90° | 110°
Optics: Polycarbonate Lens
Lifespan: 50,000 hours
Mounting: Hook (standard); Pendant (optional)
Fixture Color: Black
Frequency (Hz): 50/60
Power Factor: 0.90
THD: 20% Max

Durable Construction
Housing material: die-cast aluminum. Ingress protection: IP65. Impact resistance: IK08. Surge protection: 6kV.

Measurements
Dimensions (in): 11 W x 5 H
Weight (lbs): 5.4

Features / Accessories

• Color adjustable
• Wattage adjustable
• Optic adjustable

Notes
Optional motion sensor remote control is required to modify default sensor settings; one remote typically covers a project. Default motion sensor configuration:

• Detection Area: 100%
• Hold Time: 3 minutes
• Standby Period: 5 minutes
• Standby Dimming Level: 50% brightness

Technical specifications

• Product title: Adjustable UFO High Bay — 100 / 150 / 200 Watt | 15000 to 30000 Lumens | 3500K / 4000K / 5000K | 120–277V
• SKU: LLS-M-HB6-200A-CC
• Web ID: 2669
• Brand: LED Lighting Supply
• Wattages: 100, 150, 200 W
• Lumen outputs: 15000; 22500; 30000
• Lumens per watt: 150
• Color temperatures: 3500K, 4000K, 5000K
• CRI: 80+
• Beam Angles (standard): 60°, 90°, 110°
• Optics: Polycarbonate Lens
• Voltage: 120–277V
• Dimming: 0–10V
• Housing: Die-cast aluminum; color: black
• IP/IK Ratings: IP65, IK08
• Surge protection: 6kV
• Operating temperature: -22°F to 122°F
• Lifespan: 50,000 hours
• Certifications: UL, DLC Premium
• Warranty: 5 years
• Mounting: Hook standard; Pendant optional
• Dimensions: 11 in W x 5 in H
• Weight: 5.4 lbs
• Power factor: 0.90
• THD: 20% max
