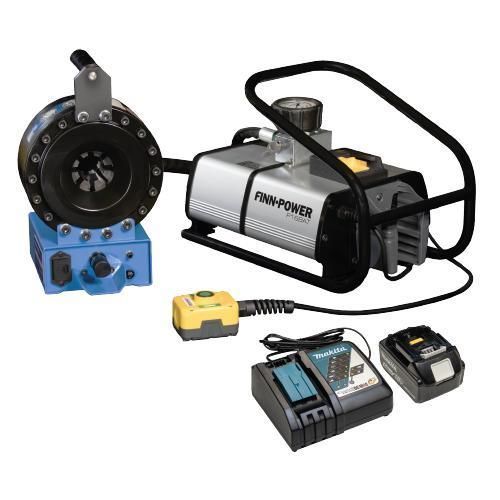

Automatic crimping machine P16BAT

hydraulicbattery-poweredcompact

Overview
Finn-Power P16BAT is a battery-operated hydraulic crimping machine designed for professional use in repair workshops and field operations. Portable, lightweight and compact, it is intended for on-site work and remote locations without mains power. Optional Makita 18V lithium-ion 6Ah battery and Makita 230V AC charger are available; verify charger compatibility with local mains.

Features

• Control: Remote control with 3 m cable
• Power: Battery operation (18 V / 6 Ah) — optional Makita battery (part no 725035)
• Charger: Makita 230 V AC charger (part no 725036). Charger: 230 V AC, Schuko — check compatibility; not suitable for all countries; use a local charger if required.
• Portable design for workshop and field use

Technical Data

• Max crimping diameter: 45 mm (1.77 in)
• Max crimping diameter with master dies: 49 mm (1.9 in)
• Max crimping force: 955 kN (95 tonnage)
• Die set series: 16
• Max opening: +20 mm
• Max opening without dies: 59 mm
• Master die D/L: 39/64 mm (1.54/2.52 in)
• Motor power: Battery
• Crimps per charge: 30–50
• Hose length: 2 m

Dimensions

• Crimping head: 228 x 197 x 333 mm (8.9 x 7.7 x 13.1 in)
• Power pack: 398 x 232 x 285 mm (15.7 x 9.1 x 11.2 in)

Weight

• Crimping head: 21.0 kg (46 lbs)
• Power pack: 13.0 kg (28.7 lbs)

Notes

• Hose size and crimping range depend on the fitting used.
• Crimping range can be increased with special dies.
• Maximum opening is total die travel; add this value to the minimum crimping diameter of the die set used to obtain the machine's maximum opening with the die set installed.

Die Set 16-series

• 18212/10 — D 10 mm / L 55 mm — Crimp range 10.0–12.0 mm
• 18212/12 — D 12 mm / L 55 mm — Crimp range 12.0–14.0 mm
• 18212/14 — D 14 mm / L 55 mm — Crimp range 14.0–16.0 mm
• 18212/16 — D 16 mm / L 55 mm — Crimp range 16.0–19.0 mm
• 18212/19 — D 19 mm / L 55 mm — Crimp range 19.0–23.0 mm
• 18212/23 — D 23 mm / L 55 mm — Crimp range 23.0–27.0 mm
• 18212/27 — D 27 mm / L 65 mm — Crimp range 27.0–31.0 mm
• 18212/31 — D 31 mm / L 65 mm — Crimp range 31.0–38.0 mm
