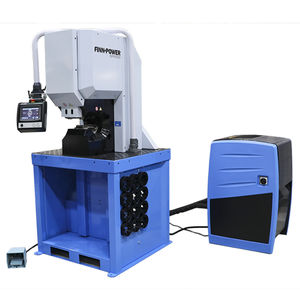

Hose crimping machine SP350automaticside feedswing
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- automatic
- Other characteristics
- side feed, vertical, swing
- Crimping force
350 kN
- Crimping capacity
Min.: 10 mm
(0.4 in)Max.: 54 mm
(2.1 in)- Power
3 kW
(4.08 hp)- Weight
710 kg
(1,565.282 lb)
Description
Finn-Power SP-series crimping machines with openC-frame structure are optimal for crimping any oddshape, bent or otherwise complex hose assemblies.
SP350 with 35 ton force is designed for demandingautomotive hoses and other bent components requiring side feeding.SP350 has adjustable crimp head angle for easier part orientationand visibility. SP350 comes with moveable swing arm for ICC control.
SP350 also available in following configurations:
•Z-model with separate crimping head and hydraulic unit
•S-model with enhanced cycle time
•D-model with double head configuration (on request)
