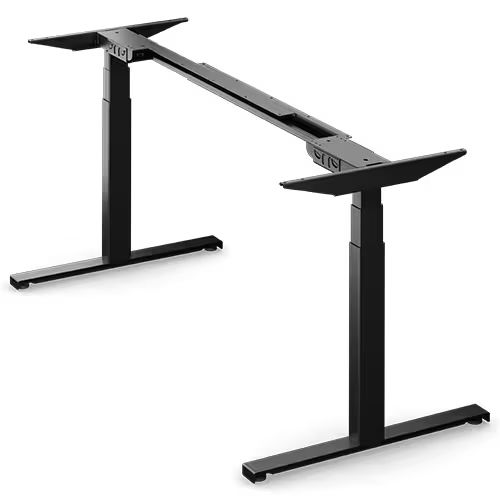

Office workstation DF1

modularheight-adjustableelectric

Overview
Desk Frame DF1 (DF1) is a flexible, customisable full-frame concept for electric sit-stand desks. It supports 2-leg, 3-leg (corner) and bench configurations and allows modular combinations of top frames, motor-housing lifting columns, feet, desk panels and accessories. DF1 is engineered for easy assembly, low standby consumption and high lifting performance.

Key features

• Full-frame solution for electric sit-stand desks (2-leg, 3-leg, bench)
• Modular combinations of top frames, columns, feet, desk panels and accessories
• Easy assembly: Kick & Click top frame and Plug & Play integration
• Standard soft start-stop motion control
• Very low standby power: 0.1 W
• Up to 1600 N lifting capacity (per product specification)
• Standard colours: white, grey or black; any RAL Classic colour possible

Configurations and components

• Top frame: Kick & Click top frame available in adjustable or fixed widths
• Motor-housing lifting columns: standard or high-speed, in rectangular, round or square cross-sections
• Feet: two lengths and three mounting options (including Click-on desk feet)
• Desk panels / controls: basic up-down panels to versions with display, memory and app compatibility
• Anti-collision options: PIEZO, Desk Sensor 1 and Desk Panels DPI
• Accessories: Desk2Device USB charger, Desk Tracking System, battery options and other value-adding accessories

Available formats
DF1 is supplied as combinations of top frame + DL SetPack (columns, desk panel, control box and cables) + DL Feet to configure 2-leg, 3-leg (corner) or bench desks. Motor-housing columns are offered in multiple shapes and sizes to match desk designs.

Included / related product families

• Kick & Click top frame solution
• DESKLINE lifting columns (DL series)
• DL Feet (Click-on options)
• Control boxes and desk panels from the DESKLINE family
• Accessories such as Desk2Device USB charger, Desk Tracking System and battery units

Technical specifications

• Lifting capacity: up to 1600 N
• Standby power consumption: 0.1 W
• Motion control: soft start-stop
• Assembly: Kick & Click top frame; Plug & Play system integration
• Configurations: 2-leg, 3-leg (corner), bench
• Standard colours: white, grey, black; customisable to any RAL Classic colour
• Motor-housing column shapes: rectangular, round and square
• Feet: two lengths; three mounting options (including Click-on)
• Compatible / referenced lifting column series (examples): DL5, DL6, DL8, DL9, DL10, DL11, DL15, DL16, DL18, DL19, DL20, DL21
• Also available in IC (Integrated Controller) variants of DL series
