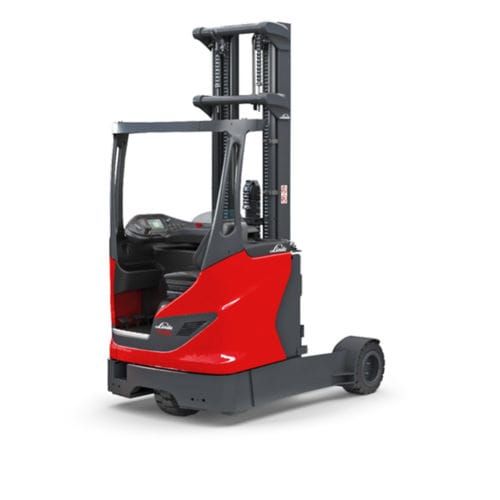

Electric reach truck R G series

side-facing seatednarrow-aislefor warehouse

Reach trucks for halls and yards R14 – R20 G-series reach trucks are ideal for combined hall and yard use, that is to say, for transport operations in a changing environment, such as when loading and unloading trucks. Oversize super-elastic wheels, a vibration-damped drive unit, increased ground clearance as well as a vibration-free driver's cab ensure driving comfort and safety. This means that the versatile R14 – R20 G reach trucks enable low-vibration operation on uneven outdoor surfaces as well as efficient load handling in narrow rack aisles in warehouses. They can be adapted to the personal comfort requirements of every driver and are distinguished by powerful engines and numerous safety features. Safety The optional armored glass panorama roof on the R14 – R20 G reach trucks protects the driver while also ensuring an optimal view of raised loads. Linde Curve Assist further improves driver safety with appropriate speed adjustment around bends. The four brake systems, regenerative and counter-current braking, automatic holding brake, as well as a hydraulic all-wheel braking system with self-adjusting load wheel brakes, enable the driver to stop quickly in hazardous situations. The lifting height display and optional load weight capture help the driver during load handling. The parking brake, which engages automatically when the driver exits the truck, enables secure stopping on ramps and gradients. A guard at shoulder height increases driver safety, for example, in narrow rack aisles. •Linde Curve Assist •All-wheel brake •Four independent braking systems •Automatic parking brake
