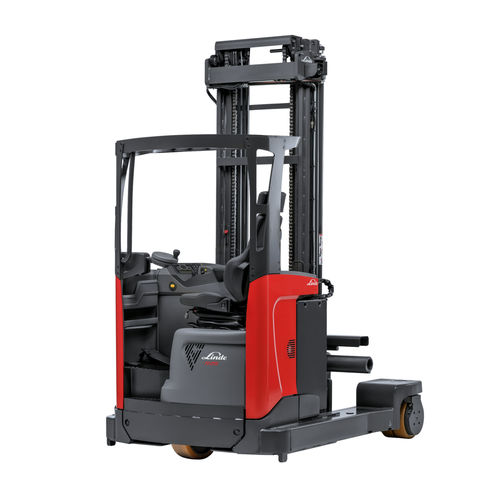

Electric reach truck R2 F series

side-facing seatednarrow-aislefor warehouse

Four-way reach trucks for narrow aisles R20 – R25 F four-way reach trucks are specifically designed for transporting particularly long items in narrow aisles. They are not only able to move forwards and backwards, but can also move sideways in both directions. Their adjustable prongs, which can be set to a width of up to two meters, also allow extra-long loads to be transported and stacked. With lift heights of up to nine and a half meters, they are also suitable for use in high rack warehouses. R20 – R25 F-series trucks can even easily handle high loads of up to 2,500 kg. This makes them ideal for long and heavy loads, such as steel girders and wooden beams for the building and timber industry as well as for use on production equipment and in the logistics sector. Characteristics Safety R20 – R25 F four-way trucks have a parking brake that engages automatically when the driver exits the truck, which enables a secure stop on ramps and gradients. The combination of the electromagnetic brake on the drive wheel and the hydraulic brake on the right tandem load wheel ensures precise braking in all driving situations. A protective pane made of high-strength, transparent polycarbonate, reliably protects the driver from falling loads while also providing a panoramic view. End position damping gently reduces the end speed during mast forward reach and lifting movements as soon as the maximum lifting height or maximum forward reach is attained. An additional function also means that the truck automatically switches to creep speed from a certain lifting height, so that loads can be safely positioned and picked up.
