Characteristics

Energy
battery-powered
Operator
automated
Applications
transport, handling, for warehouse, for pallet, for lifting, loading, storage, narrow-aisle, unloading, for industrial applications
Other characteristics
counterbalanced, high-lift, for heavy loads, low-noise
Carrying capacity

1.4 t
(1.5 us ton)

Lifting height

4,144 mm
(163.15 in)

Free lift

150 mm
(5.9 in)

Height of mast when lowered

2,583 mm
(101.7 in)

Height of mast when raised

4,966 mm
(195.51 in)

Overall width

920 mm, 1,109 mm
(36.2 in, 43.7 in)

Overall length

3,133 mm
(123.3 in)

Fork width

100 mm
(3.9 in)

Fork length

1,050 mm
(41.34 in)

Fork thickness

50 mm
(1.97 in)

Fork spacing

540 mm
(21.26 in)

Motor power traction

2.3 kW
(3.127 hp)

Motor power lifting

3.2 kW
(4.351 hp)

Weight

2,458 kg
(5,418.96 lb)

Description

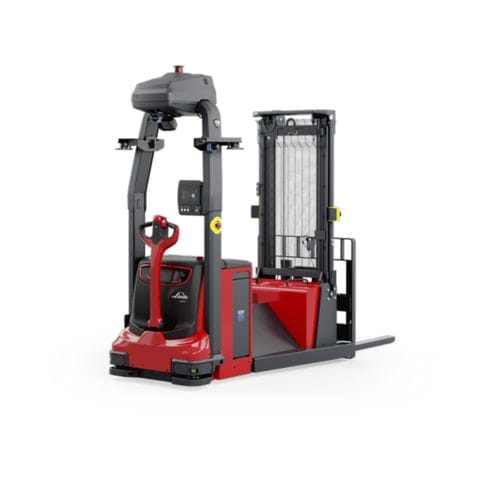

Versatile truck for optimized automation The automated L-MATIC AC k pallet stacker from Linde Material Handling raises efficiency in intralogistics to a new level. With its load capacity of 1,400 kilograms and a storage height of up to 3.8 meters, it is ideal for ground transport, storage and retrieval in wide-aisle warehouses, and as an infeed truck for narrow-aisle applications. Thanks to its cantilever fork, the counterbalanced forklift truck can pick up closed load carriers directly from the ground. Its comprehensive sensor system for load detection enables different pallet types and special load carriers to be handled. Different fork lengths and variants offer added flexibility for a wide range of load sizes and shapes while extensive safety equipment reliably detects obstacles and people in its surroundings, ensuring maximum protection.
