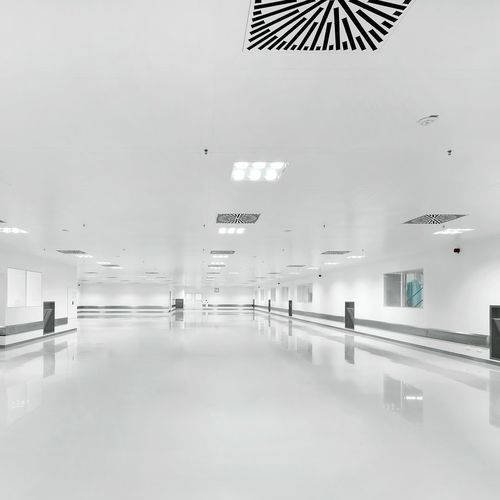

Metal core isolating panel Line 100S Type 2

steel facingceiling

Our Line 100S Type 2 load bearing steel grid system offers an absolute maximum of flexibility and modularity for use in clean rooms. Large suspension distances, high access level load bearing capacity, concealed cable and media routing as well as a homogeneous load bearing surface are only some of the advantages of this clean room ceiling that can be used as a maintenance level. The simple system structure ensures fast and efficient installation. The system meets all requirements for GMP and DIN EN ISO 14644 compliant design. Fully walkable maintenance ceiling Easy to clean Resistance to a wide range of cleaning products and disinfectants GMP-compliant Media routing possible within all strip grids Dimensions Height 120 mm Joint width (F) 3 mm Standard pitch 1.200 x 1.200 mm max. suspension distance 2.400 x 2.400 mm Visible width of grid profiles 100 mm Technical data Serviceability from above max. surface load 150 kg/m² max. point load 150 kg Weight 50 kg/m² Component list rrt_linie-100-s-typ2_explosion 1 Walkable sheet steel: For creating a walk-on complete system. Dimensions according to the extension grid, material thickness 2 mm. 2 Ceiling panel: The flush ceiling panel is made to measure according to the extension grid. The material is galvanised steel. Optionally in stainless steel. The surface can be powder-coated according to RAL or other common colour systems. Stainless steel can also be supplied polished or polished and brushed (Duplo polish). Gloss level approx. 20E for RAL 9010.
