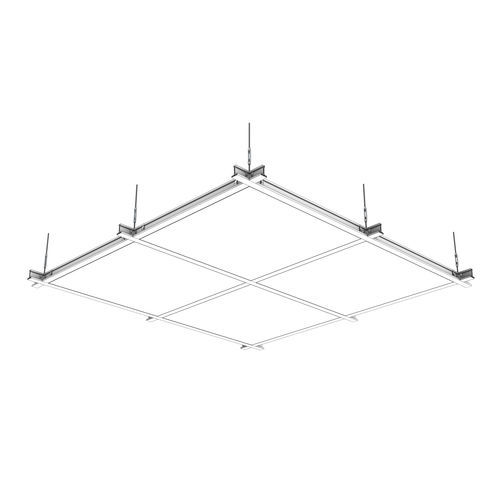

Metal core isolating panel Line 55A

galvanized steel facing

Our Line 55A load bearing aluminium grid system is ideal for use in the most critical GMP and DIN EN ISO 14644 areas, where a large number of filter fan units are essential. The narrow face width of the support profiles and their high load bearing capacity mean that the largest possible filter area is achieved with FFU full occupancy. The aluminium profiles are ideally suited to accommodate Teardrop lights. The system can be used as a maintenance level for technical trades, optionally with FDA-compliant silicone tube seal. GMP-compliant profiles only 55 mm wide walkable version available Dimensions Height 80 mm Joint width (F) 3 mm Visible width of grid profiles 55 mm Technical data Serviceability from below from above max. surface load 150 kg/m² max. point load 150 kg Weight 20 - 50 kg/m²
