Flat sheet metal EI30-VKF

metalceiling

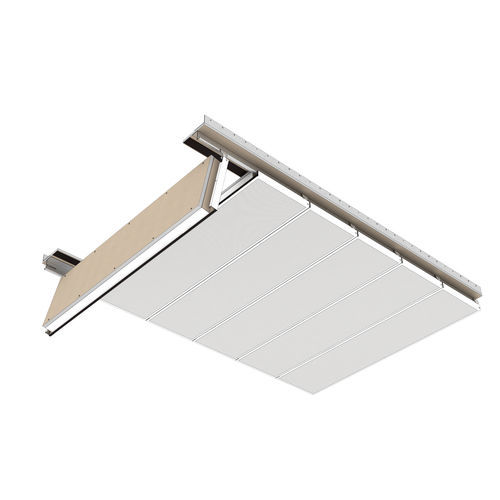

The ceiling elements of this fire rated ceiling can be removed or swung down and slid without the need for any tools. No additional ceiling void is necessary for maintenance works. Moreover, up to three ceiling elements can be moved together to facilitate maintenance works. Tolerances on the wall can be compensated. Lockable elements are available for areas with increased safety requirements. VKF fire protection application No. 26870 freely spanned construction good compensation of tolerances on the wall is possible due to an adjustable wall connection maintenance option due to ceiling elements that can be individually operated, swung down and slid without tools swung down ceiling elements can be moved together to receive a large inspection opening (approx. 3,000 x 2,000 mm) no additional ceiling void is necessary for maintenance works hygienic and easy to clean Length (L) 500 - 3000 mm Width (B) 200 - 500 mm Height 67.5 mm Adjustment range 10 - 35 mm lockable Length (L) 500 - 3000 mm Width (B) 200 - 500 mm Height 67.5 mm Adjustment range 10 - 35 mm
