Ethernet communication port robot controller Pilot

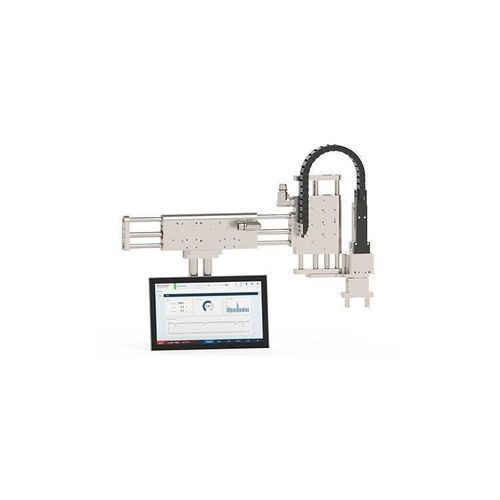

Ethernet communication port robot controller - Pilot - Linmot
Ethernet communication port robot controller - Pilot - Linmot
Ethernet communication port robot controller - Pilot - Linmot - image - 2
Ethernet communication port robot controller - Pilot - Linmot - image - 3
Ethernet communication port robot controller - Pilot - Linmot - image - 4
Add to favorites
Compare this product

Characteristics

Characteristics and options
Ethernet communication port

Description

Product overview
LinMot Pilot is an intuitive no-code robot controller for multi-axis LinMot systems that requires no PLC or programming knowledge.

What it does
  • Browser-based interface: motion sequences can be taught, configured and executed via a web browser.
  • Predefined commands and teach-in functions for fast implementation of typical tasks.
  • Combines control system and plant HMI in one platform to reduce programming and commissioning time.
  • Supports simple tasks such as pick-and-place and more demanding tasks such as screwing and belt synchronization.

Benefits / Usage
  • No-code platform — no programming knowledge required.
  • No separate development environment — work directly in the browser.
  • Intuitive operation — test and adapt programs quickly.
  • Minimal training time — ready to use immediately.
  • Rapid prototyping — fast from idea to movement.
  • Know-how-based applications parameterized via wizards for process-specific tasks.

Available functions in LinMot Pilot
  • Logic commands
  • Movement commands
  • I/O control and variable management
  • Customizable interface

Expandable / Know-how-based applications (examples)
  • Conveyor belt tracking
  • Camera interface for vision integration
  • Closing and screwing
  • Palletizing
  • Additional process-specific modules

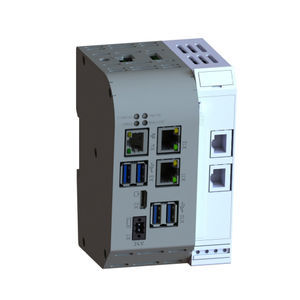

TM01 technology module (robot control system)
  • Supports up to 8 axes
  • Quad-core processor, 1.5 GHz
  • 2 ms cycle time
  • Profinet or Ethernet/IP with PLC; EtherCAT with fieldbus I/Os
  • Industry 4.0 readiness via OPC UA
  • Expandable via additional gateway for Ethernet POWERLINK, EtherCAT, Sercos

Technical specifications
  • Product name: LinMot Pilot
  • Controller type: No-code, browser-based robot controller
  • Supported axes: up to 8
  • Processor: quad-core 1.5 GHz (TM01)
  • Cycle time: 2 ms
  • Fieldbus / interfaces: Profinet, Ethernet/IP, EtherCAT; optional gateway for POWERLINK and Sercos
  • IIoT / Industry 4.0: OPC UA support
  • Main functions: logic and movement commands, I/O control, variable management, customizable UI
  • Typical applications: pick-and-place, screwing, belt synchronization, conveyor tracking, palletizing
