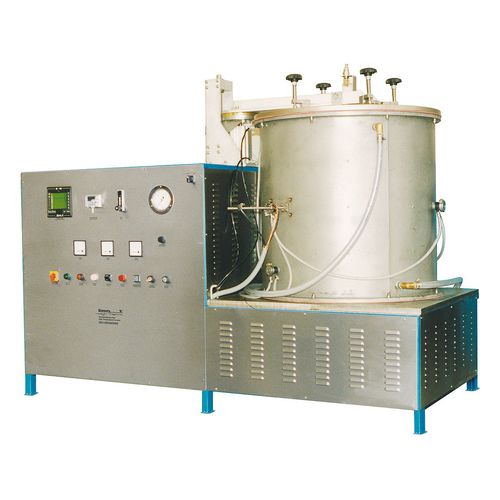

Heat treatment furnace GHV

chamberelectric resistancevacuum

firing, graphitization/carbonisation, sintering, tempering Annealing and sintering of materials. Further possible applications: Research and development of metallic and ceramic materials Heat treatment of materials in nuclear sector PRODUCT SPECIFICATIONS The most important characteristics: Graphite felt insulation Heated by zylindric graphite heating elements Heating power app. 38 KW Vertical operation Gas and vacuum tight chamber Vacuum at T = 20 °C app. 5 x 10-1 mbar Gas-feeding device with flowmeter for N2 and AR Process guiding software We make it possible: Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes. Possible standardized options: Charge weight up to app. 100 kg Horizontal operation Operation as bottom loader Various control systems Emergency gas purging unit Condensate trap Gas systems for flammable gases Burning-off device with flame supervision for flammable gases Safety package for flammable gases Vacuum pump stand for end pressure > 1 x 10-3 mbar Water cooler and emergency water cooling
