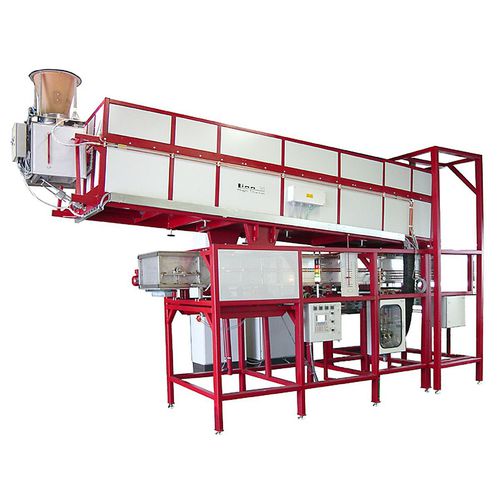

Thermal furnace FDHK

pyrolysisdryingcalcination

Other possible applications could be heat treatment, calcination, drying, pyrolysis of bulk materials (powder, granules, fiber, waste). The most important characterstics Fully automated operation Industrial rotary tube furnace 4 heated zones 81 kW max. heating power gastight Adjustable furnace inclination 0 – 15 ° and rotation speed up to 5 min-1 Easy handling Resistance heated with FeCrAl-heating elements Pipe leakage monitoring Metallic insert tube (1.4841) Insulation of high-quality ASW insulation boards High energy efficiency Charging via oscillating conveyors Gassing device for nitrogen Cascased product cooling via cooling plate and cooling belt in inert gas atmosphere We make it possible Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes. Standard options Different temperature controller Burning-off device with flame supervision for safe operation when using flammable and explosive gases Gas warning system for safe operation when using flammable and explosive gases Condensate trap Thermal afterburning Process-guiding software for full control and documentation via PC Cooling water heat exchanger Uninterruptable power supply (UPS)
