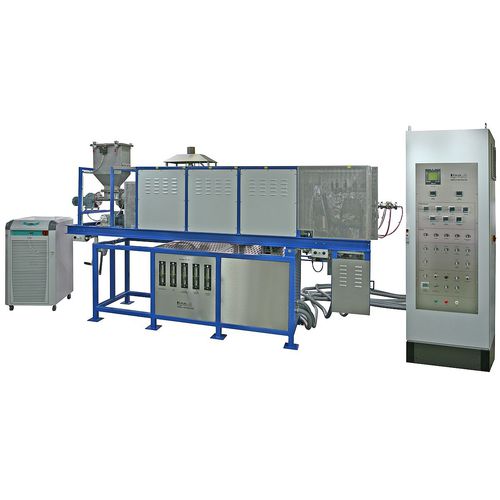

Tubular furnace FDHK

rotarysinteringthermal

ashing, calcination, oxydation, pyrolysis, reduction, thermal recycling Pyrolysis of organic materials Other possible applicatons are: Sintering of metallic powder calcination, drying, heat treatment of bulk materials (powder, granules, …) active carbon production Research and Development Reduction The most important characteristics fully-automated operation laboratory rotary tube furnace 3 heated zones 600 mm heated length 150 mm tube diameter 17 kW max. heating power Gastight design adjustable furnace inclination 0 – 10 ° and speed up to 20 min-1 easy to handle resistance heated with FeCrAl-heating elements Tube breakage monitoring Metallic insert tube (Inconel 601) Insulation of high-quality ceramic fiber High energy efficiency 6 trailing thermocouples for temperature measuring in the tube Screw conveyor Gas feeding device for 5 gases (Ar, N2, H2O(D), CO2, Butan) Inspection glass for visual process control or additional pyrometer measuring Gas feeding device for safe operation when using flammable and explosive gases Burning-off device with flame supervision for safe operation when using flammable and explosive gases
