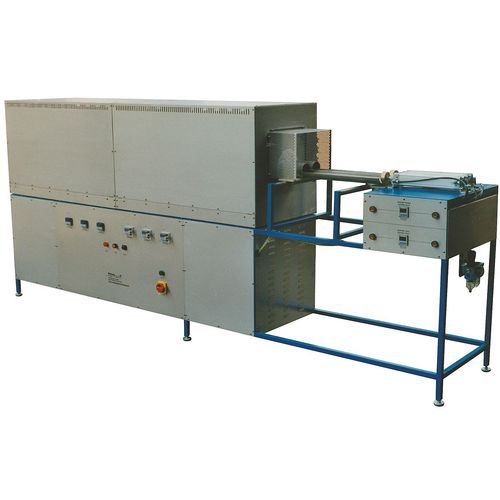

Annealing furnace FRH

sinteringtemperingtubular

annealing, forging, heat treatment, pre-heating, tempering Pre-heating of forging parts. Further possible applications: Heat treatment of metallic components Sintering of metallic powders The most important characteristics: 3 heated zones 2000 mm heated length 2 x 73 mm tube diameter 38 kW max. heating power Resistance heating with FeCrAl heating elements 2 insert tubes made of powder metallurgical FeCrAl-alloy Insulation made of high quality ASW insulation boards High energy efficiency Charging by pneumatic pushing mechanism We make it possible: Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes. Standard options: Various temperature controller Gas tight design Burning-off device with flame supervision for safe operation when using flammable and explosive gases Gas warning system for safe operation when using flammable and explosive gases Condensate trap Process guiding software for complete control and documentation via PC Cooling water recirculation cooler
