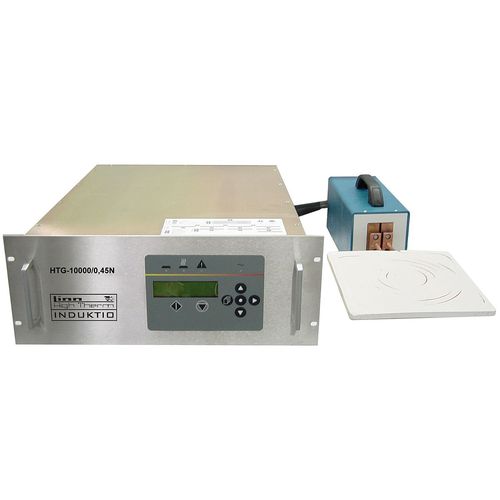

Induction heating system HTG-N series

induction heating system
induction heating system
induction heating system
Add to favorites
Compare this product


induction, high-frequency


HTG-N-MODEL TMAX UP TO 0 °C HIGH FREQUENCY GENERATOR, 1,2 - 10 KW, 150 - 400 KHZ Applications: borating, calibration, casting, crystal growing, CVD chemical vapour deposition, forging, fusion, gemstone heat treatment, glueing, graphitization/carbonisation, hardening, heat treatment, levitation melting, melting, pre-heating, pulling, remelting, sample preparation for spectroscopy, shrink fitting, soldering, surface coating, tempering Most important characteristics High frequency solid state generators Suitable to be used for installation in automatic machines Light Weight Easy to handle We make it possible Linn High Therm is specialized in customizing its products to customer´s needs. Please let us know if you desire any modifications. Options Induction coil Temperature control unit suited for pyrometer temperature measurement Optical pyrometer type Additional capacitors for other inductivity ranges Pedal switch Serial RS 485 interface Technical details Resonant high frequency power supply using Power MOSFET and special frequency and power sensing technology for fast precise induction heating. Due to the compact design the unit is especially suitable to be used in laboratories and industries for installation in automatic machines, assembly lines and machinery. Suitable for all kinds of inductive heating such as hardening, soldering annealing, welding, melting, levitation melting, even in vacuum containers. Suitable for induction coils between 0,3 and 2,2 µH. Control unit with separate RF/HF-part (cable length 2,5 m). HF/RF-output galvanically separated from mains.
