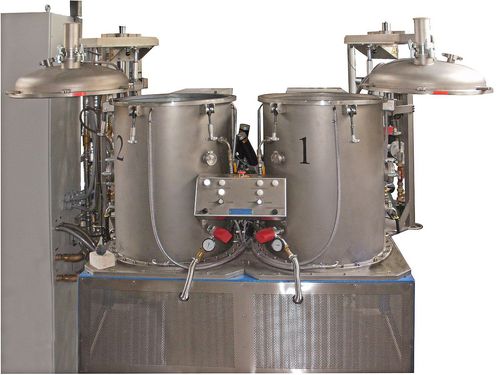

Chamber furnace IT-KTV

rotarymeltingthermal

MFG-100 induction generator (100 kW continuous power) Power output of generator freely adjustable 0.5.- 100 % Double water cooled, gas and vacuum tight chambers made of 1.4301 (AISI 304) with overpressure protection, volume app. 300 l Double output adapter (one for every gas/vacuum chamber) Induction generator alternatively switchable between two output adapters Emergency water cooling Electric lifting devices for chamber lids Pyrometers for melting temperature measurement and supervision Vacuum pump system for vacuum 1 x 10-5 mbar with rotary vane pumps and turbomolecular pump Precision gas (Ar, N2) purging with MFCs (Thermal Mass Flow Controller) Oxygen measurement Controller SE-502 Circulation cooler We make it possible: Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes. Possible standardized options Different cold wall crucible sizes Different controller systems Different vacuum pump systems Emergency gas purging device Gas warning system Process guiding software Controlled vacuum pressure Post-charging unit
