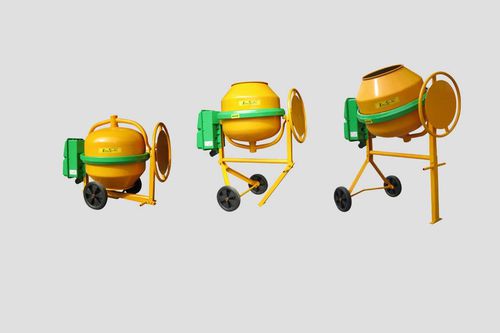

Electric concrete mixer S1000

mobilecompact

Description
Portable concrete mixer with foldable legs, lightweight and easy to transport. Designed for site use and can be loaded into a car or shipped in protective packaging according to customer requirements.

Features

• Drum capacity: 140 L
• Nominal mixing capacity (approx.): 110 L (depends on material)
• Cement bag capacity: 1 x 25 kg
• Electric motor: single-phase, 0.5 HP (0.37 kW)
• Weight (with motor): 60 kg
• Dimensions (assembled): 120 x 68 x 130 cm (H)

Packaging and handling

• Can be dispatched packed in wooden cage (115 x 65 x 85 cm)
• Can be dispatched packed in carton box (70 x 78 x 72 cm)
• Easy to assemble/disassemble for transport

Technical specifications

• Model: S1000
• Drum capacity: 140 L
• Working capacity (approx.): 110 L
• Cement bag: 1 x 25 kg
• Motor: single-phase, 0.5 HP / 0.37 kW
• Weight (with motor): 60 kg
• Dimensions assembled: 120 x 68 x 130 cm (H)
• Packaging dimensions (wooden cage): 115 x 65 x 85 cm (H)
• Packaging dimensions (carton): 70 x 78 x 72 cm (H)

Note
Data and dimensions are indicative and the manufacturer reserves the right to make changes without notice.
