Dynamic mixer S 240

batchsolid/liquidconstruction

Product
Pan mixer model S 240 designed for homogeneous mixing of cementitious mortars and pre-mixed construction materials. Suitable for on-site and factory batching where consistent mixing is required.

Features

• Drum capacity: 240 L
• Work capacity (approx.): 170 L (varies with material density)
• Weight with electric motor: 177 kg
• Package dimensions: 101 x 92 x 106 (h) cm
• Engine power: 2.5 HP (1.85 kW)
• Overall length: 98 cm
• Overall width: 92 cm
• Overall height: 114 / 136 cm
• Vibration: a(w) 0.40 m/s²

Details pictures

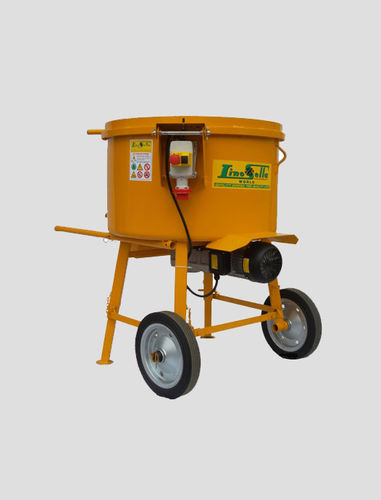

• Model S 240 (overview)
• Drain vent in steel to reduce wear and ensure easier opening
• Height-adjustable legs for stable positioning on uneven floors
• Reinforced tank bottom for extended service life
• Thicker metal mixing blades for faster, more uniform mixing

Additional information

• Brochure available in PDF (product brochure: Lino Sella Pan Mixer S240)

Technical specifications

• Drum capacity: 240 L
• Work capacity (approx.): 170 L (variable depending on material)
• Typical bag loading examples: 1 × 30 kg pre-mixed bag; alternative: 1 × 25 kg + 1 × 10 kg
• Weight with electric motor: 177 kg
• Package dimensions: 101 x 92 x 106 (h) cm
• Engine power: 2.5 HP (1.85 kW)
• Overall length: 98 cm
• Overall width: 92 cm
• Overall height: 114 / 136 cm
• Vibration: a(w) 0.40 m/s²
