Commercial tent BTA

modularfor event organizationevent

Overview
The BTA series clear span ranges from 10 m to 25 m. Main profile section: 204x110x4 mm. The structure is modular (unit-combination) with bay spacing of 5 m allowing length to be increased or decreased in 5 m increments. Main frameworks (upright supports and roof beams) are extruded anodized aluminum (6061/T6). Covers are PVC-coated polyester textile, flame-retardant to European standard DIN 4102 B1 / M2. Design wind resistance up to 100 km/h (wind load ~0.5 kN/m²).

Available shapes

• Square
• Hexagonal
• Octagonal
• Decagonal
• Dodecagonal
• Double-decker

Typical uses

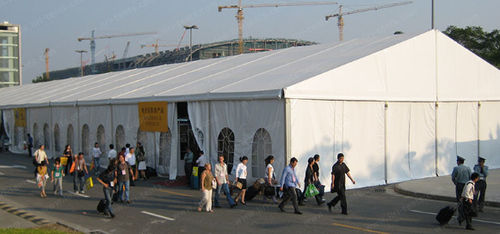

Suitable for temporary or permanent installations: exhibitions, festivals, sporting events, large gatherings, food events and other outdoor events requiring covered space.

Accessories (available)

• Sidewalls with clear PVC windows
• Ground anchors
• Weight plates
• Ceiling lining

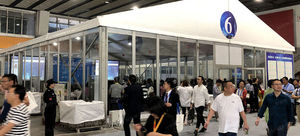

• Glass wall / curtain wall system
• ABS hard wall system
• Sandwich panels
• Color steel panel walls
• Glass doors, sliding doors, electric roller doors
• Transparent PVC covers
• Flooring systems
• Drainage channels
• 1/2 hexagon, octagon, decagon, dodecagon end units
• Peaked tent units

Patent
National patent number: ZL201120397654.4

Technical specifications

• Span Width 10 m — Eave Height 3.88 m — Ridge Height 5.53 m — Bay Distance 5 m — Main Profile 204x110x4 mm (4-channel)
• Span Width 12 m — Eave Height 3.88 m — Ridge Height 5.83 m — Bay Distance 5 m — Main Profile 204x110x4 mm (4-channel)
• Span Width 15 m — Eave Height 3.88 m — Ridge Height 6.30 m — Bay Distance 5 m — Main Profile 204x110x4 mm (4-channel)
• Span Width 20 m — Eave Height 3.88 m — Ridge Height 7.10 m — Bay Distance 5 m — Main Profile 204x110x4 mm (4-channel)
• Span Width 21 m — Eave Height 3.88 m — Ridge Height 7.25 m — Bay Distance 5 m — Main Profile 204x110x4 mm (4-channel)
• Span Width 25 m — Eave Height 3.88 m — Ridge Height 7.88 m — Bay Distance 5 m — Main Profile 204x110x4 mm (4-channel)
