Commercial tent

mobiledisassemblablefor event organization

Overview

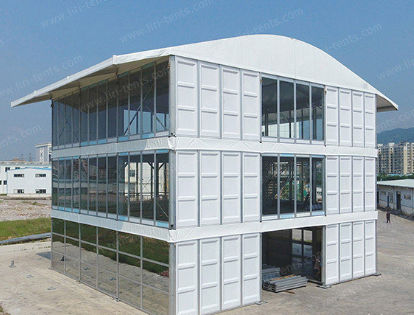

Triple-decker tent is a modular, mobile three-storey tent system designed for rapid assembly and flexible configuration. The main framework is manufactured from high-strength aluminum alloy. Floors are cassette wooden panels with aluminum-edged alloy frames. Per-floor internal heights are selectable at 3.3 m or 4.0 m, providing total internal vertical space up to and exceeding 12 m depending on configuration. The system is modular in 5 m sections and supports clear spans from 3 m up to 80 m. The structure can be reconfigured by removing upper frames/floors to operate as double- or single-storey tents.

Customization & Accessories
The three-storey tent can be customized by floor and by functional area. Typical options include solid walls, various floor finishes, mantle trim, internal or external staircases, and balconies to extend usable outdoor space and viewing lines. Configurations can be adapted to event, exhibition, or temporary building requirements.

Patent information
Product patent: ZL201721028267.7

Product Specification (table)
Span Width | Height of first floor | Height of second floor | Height of third floor | Eave Height | Top Height | Main Profile
15 m | 3.35 m | 3.35 m | 3.30 m | 10 m | 12.5 m | 300x120x5 mm (4-channel)
15 m | 4.00 m | 4.00 m | 3.80 m | 11.8 m | 14.3 m | 300x120x5 mm (4-channel)
20 m | 3.35 m | 3.35 m | 3.30 m | 10 m | 13.3 m | 300x120x5 mm (4-channel)
20 m | 4.00 m | 4.00 m | 3.80 m | 11.8 m | 15.1 m | 300x120x5 mm (4-channel)
25 m | 3.35 m | 3.35 m | 3.30 m | 10 m | 14.1 m | 350x120x5 mm (4-channel)
25 m | 4.00 m | 4.00 m | 3.80 m | 11.8 m | 16.0 m | 350x120x5 mm (4-channel)
30 m | 3.35 m | 3.35 m | 3.30 m | 10 m | 14.9 m | 350x120x5 mm (4-channel)
30 m | 4.00 m | 4.00 m | 3.80 m | 11.8 m | 16.4 m | 350x120x5 mm (4-channel)

3D Drawing / Model
A 3D model is available for visualization on the product page to review structural arrangement, access routes, and integration of accessories.

Technical specifications

• Brand: Liri Tent
• Framework material: high-strength aluminum alloy
• Floor type: cassette wooden floor with aluminum-edged alloy frame composite
• Per-floor internal heights: 3.3 m or 4.0 m
• Maximum internal vertical height (three floors combined): up to and exceeding 12 m depending on configuration
• Modular section length: 5 m per section
• Clear span width range: 3 m to 80 m
• Convertible configuration: reconfigurable as single-, double-, or three-storey by removing frames/floors
• Installation: designed for quick installation; zero residual material after dismantle; intended for 100% reuse
• Typical main profile examples by span: 300x120x5 mm (4-channel) and 350x120x5 mm (4-channel)
• Optional accessories and finishes: solid walls, floors, mantle trim, internal or external stairs, balcony
• Top and eave heights vary by span and per-floor height selection (see Product Specification table)
