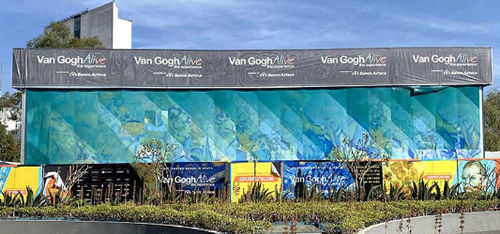

Commercial tent Cube Structure

modularinflatableevent

General overview
The inflatable-roof cube marquee tent is a modular, flat-roof structure designed for temporary and semi-permanent outdoor use. The roof uses a thermally insulated inflatable PVC membrane providing thermal insulation and temperature stabilization. Available clear span widths include 10m, 15m, 20m, 25m, 30m (additional 35m and 40m options listed). The roof pitch is 7°, and the improved eave design increases flat advertising space for banners.

Accessories

• Sidewalls with clear PVC church windows
• Ground anchors
• Lining and curtains
• Glass wall system
• ABS hard wall system
• Sandwich wall system
• Steel sheet wall system
• Glass doors and sliding doors
• Electromotor rolling door system
• Transparent roof cover and sidewalls
• Flooring system

Patents
Patent numbers: ZL201120397654.4, ZL201520503410.8

Product Specification
Span Width — Eave Height — Ridge Height — Bay Distance — Main Profile
10m — 5m — 5.58m — 5m — 204x120x4mm (4-channel)
15m — 5m — 5.89m — 5m — 256x121x5mm (4-channel)
25m — 5m — 6.5m — 5m — 256x121x5mm (4-channel)
30m — 5m — 6.8m — 5m — 300x120x5mm (4-channel)
35m — 5m — 7.2m — 5m — 350x120x5mm (4-channel)
40m — 5m — 7.5m — 5m — 350x120x5mm (4-channel)

Technical specifications

• Available clear span widths: 10m, 15m, 20m, 25m, 30m (spec sheet also lists 35m and 40m)
• Standard eave height: 5m
• Roof pitch: 7° (flat roof)
• Roof material: thermally insulated inflatable PVC membrane (heat insulation and thermostatic effect)
• Wind loading: up to 100 km/h (≈0.5 kN/m²)
• Main profile sizes: 204x120x4mm; 256x121x5mm; 300x120x5mm; 350x120x5mm (4‑channel profiles)
• Bay distance: 5m
• Available accessory systems: glass walls, ABS hard walls, sandwich walls, steel sheet walls, glass/sliding doors, electromotor rolling doors, transparent covers, flooring, lining and curtains, ground anchors
• Patents: ZL201120397654.4, ZL201520503410.8
