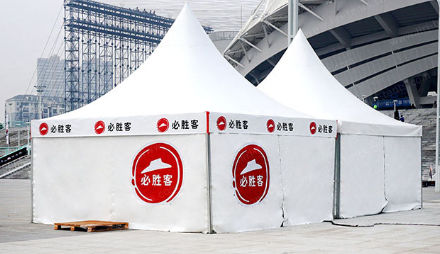

Commercial tent Mini Pagoda

industrialreceptionmobile

Overview
The Mini Pagoda tent is offered in three span sizes: 2×2 m, 2.5×2.5 m and 3×3 m. Note: the main product text cites an eave height of 2.6 m while the detailed specification table lists an eave height of 2.3 m for all spans. The framework (uprights and roof beams) is manufactured from 55×55×2 mm 4-channel extruded, anodized aluminium (6061/T6). Covers are double PVC-coated polyester, flame-retardant to industry standards, fitted with a professional bar-tensioning system. Covers can be customised with graphics or logos.

Design & Construction
The Mini Pagoda uses a simplified interior structure compared with conventional European cone tents. Key construction features include a professional bar-tensioning system and sidewalls fixed to the eave beam (rather than hung on rings), improving wind performance, cover tightness and parts interchangeability.

Key improvements

• Bar-tensioning system replaces rubber-tensioning
• Sidewalls fixed to eave beam instead of hung on rings
• Improved wind loading capacity and cover tightness
• Interchangeable parts for easier maintenance and replacement

Applications

• Temporary or permanent on-site buildings
• Outdoor events, exhibitions and promotional stands
• Small production or packaging areas
• Rescue missions and emergency shelters
• Theme park and leisure area shelters

Accessories & Options

• Clear PVC window sidewalls
• Ground anchors and ballast plates
• Lining and curtains
• Glass, ABS and sandwich walls
• Glass doors, sliding doors and roller doors
• Transparent roof covers and sidewalls
• Flooring systems and rain gutter systems
• Custom design services and branding on covers

Product Specification
Span Width — Eave Height — Ridge Height — Main Profile
2 m — 2.3 m — 3.65 m — 55×55×2 mm (4-channel)
2.5 m — 2.3 m — 3.93 m — 55×55×2 mm (4-channel)
3 m — 2.3 m — 4.12 m — 55×55×2 mm (4-channel)

Patent
Product patent: ZL201210448787.9

Notes
Quick and easy assembly and dismantling without heavy equipment. Compatible with a wide range of accessories to extend functionality. Manufacturer provides a 3D model (visualization) for product review.
