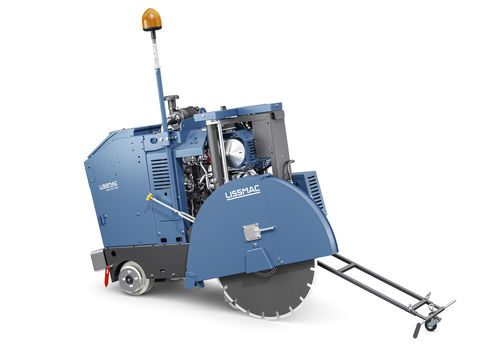

Floor saw MULTICUT 590verticalfor concrete
Add to favorites
Compare this product
Characteristics
- Technology
- floor
- Orientation
- vertical
- Treated material
- for concrete
Description
MULTICUT 590
Powerful floor saw for the toughest building site use in a compact design.
cutting depth max.520 mm
cutting depth setting electro hydraulic smoothly adjustable
saw blade Ø max.1200 mm
arbor size 35 mm (6x M12 TK 120) / 25.4 mm
drive motor Perkins 3-cylinder turbo diesel
output power max.36 kW / 49 Hp.
emission level EU Stage V / US EPA Tier 4 Final
traction drive forwards electric stepless 0 – 50 m/min
traction drive reverse electric stepless 0 – 25 m/min
cutting gear reverse electric stepless 0 – 25 m/min
saw blade speed 950 / 1400 / 2100 / 2600 1/min
saw blade speed manual gearbox 950 / 1400 / 2100 / 2600 1/min
saw blade speed saw blade shaftt 3 variants: 1110 / 1400 / 2390 1/min
left/right cut yes
dimensions (L/W/H)1710 / 805 mm / 1330 mm
weight 933 kg
