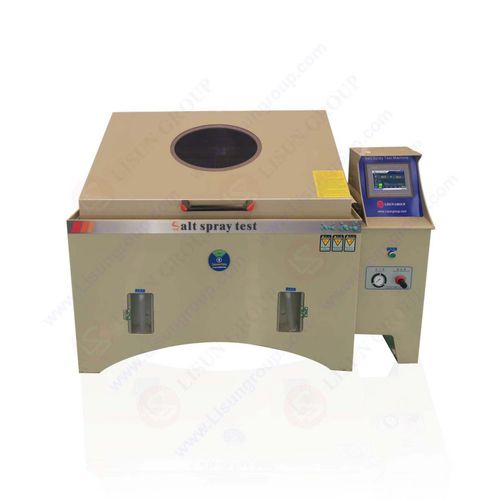

Salt spray test chamber YWX/Q-010

for electrical equipmentwith window

The Salt Spray Test Chamber is applicable to the salt spray corrosive test for the protection layer of components, parts, electronic and electrical parts and metal materials and industrial products. The salt fog test chamber meets the following standards: IEC60068-2-11 (GB/T2423.17), GB/T10125, GB/T1771, ISO9227, ASTM-B117, GB/T2423-18, QBT3826, QBT3827, IEC 60068-2-52, ASTM-B368, MIL-STD-202, EIA-364-26, GJB150, DIN50021-75, ISO3768, ISO 9227, 3769, 3770; CNS 3627, 3885, 4159, 7669 etc. • A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow. • Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement. • The Salt Spray Chamber Working room temperature range：RT＋5℃~50℃ (The setting value cannot be lower than the current ambient temperature); Saturated barrel temperature: +40°C~+63°C; • Brine temperature: preheated by laboratory temperature; Temperature uniformity: ≤ ±2°C; Temperature fluctuation: ≤ ±1°C; • The Salt Spray Test time: 0-99,999m (adjustable); Settlement: 1-2ml/80cm²/h; • The Salt Spray Test Chamber Spray method: NSS (neutral) test, AASS (acidic) test, CASS (copper acceleration) test, custom test, programmable test, each test can choose continuous spray or intermittent spray (according to industry standards). The ratio of each test solution has a corresponding explanation in the test setting interface.
