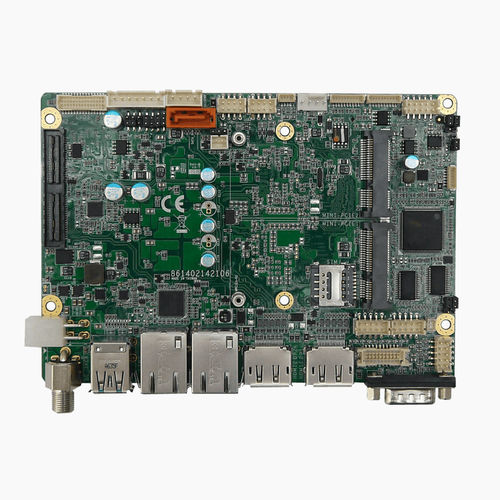

3.5" single-board computer AECX-KBL6Intel® Kaby Lake ProcessorSATAUSB 3.0
Add to favorites
Compare this product
Characteristics
- Form factor
- 3.5"
- Processor
- Intel® Kaby Lake Processor
- Extension slot
- SATA
- Connectivity
- USB 3.0
- Other characteristics
- embedded, industrial
Description
3.5" SBC with Intel® 7th Gen Core™ i7/i5/i3 / Celeron® processors, 2 HDMI(DP)/ LVDS(eDP), SATA III, 3 COM, 6 USB, AMIO, Dual Intel® GbE LAN.
Intel® 7th Gen Core™ i7/i5/i3 / Celeron® series processor on board
One 260-pin SO-DIMM up to 16GB DDR4 2133MHz SDRAM
Multi-Display: 2 HDMI(DP)/LVDS(eDP)/AMIO (optional)
Two Intel® Gigabit Ethernet ports
2 Mini-PCIe (2 combo mSATA, 1 w/ micro-SIM) expansion slots
1 SATA III (w/ SATADOM), 3 COM, 2 USB 3.0 and 4 USB 2.0
Supports 4K/2K Resolution Display
DC-in 12V; 19V ~ 24V (optional)
EuP/ErP 2013 Ready
Support Intel® AMT v11.0 (w/ Core™ i7/i5 processors)
