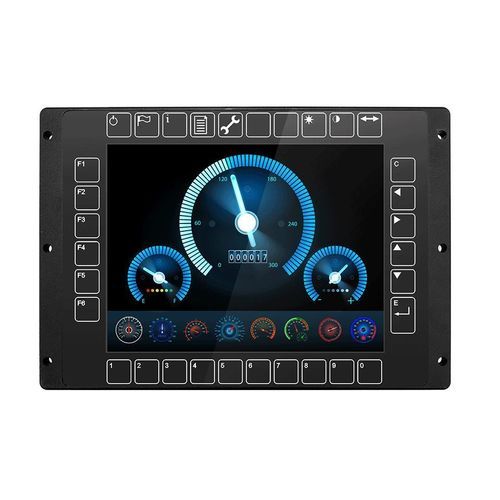

Touch screen panel PC ITRP-1045-EHL2-ZP00-1001

LCDTFT LCDLED backlight

Overview
The ITRP-1045-EHL2 is a 10.4-inch sunlight-readable TFT LCD display (4:3) with 1024 × 768 resolution and a 1000 nits LED backlight. Part of Litemax’s Spanpixel line, it is engineered for transportation and kiosk environments requiring high brightness, wide viewing angles and rugged front protection.

Main Features

• High Brightness: 1000 nits LED backlight for sunlight readability
• Front panel protection: IP65 with 10 mm P4 front glass
• Aspect ratio: 4:3 with 1024 × 768 resolution
• Projected Capacitive (PCAP) touch support
• Fanless design optimized for vehicle and public deployments
• Backlight MTBF: 100,000 hours
• Embedded platform: Intel Atom x6413E

Specification (table)
Model Name: ITRP-1045-EHL2-ZP00-1001
Description: 10.4" TFT LCD, 1000 nits LED Backlight, 1024x768
Screen Size: 10.4"
Display Area (mm): 210.4 (H) x 157.8 (V)
Brightness: 1000 cd/m2
Resolution: 1024 x 768
Aspect Ratio: 4 : 3
Contrast Ratio: 1000 : 1
Pixel Pitch (mm): 0.2055 (H) x 0.2055 (V)
Viewing Angle: 160° (H), 160° (V)
I/O: USB 3.0 Type A x1, HDMI x1, Audio M12 4Pin, LAN x2 M12 8Pin, USB3.0 M12, GPIO x1 M12, COM x2 M12, Power 4Pin M12
CPU: Intel® Atom x6413E (1.5 GHz / 3.0 GHz, QC, 16EU, 9 W)
OS: Windows 11 IoT, Linux
RAM: 8 GB DDR4
Storage: 128 GB M.2 SSD
Input Power: DC 9~36V input
Power Consumption: Typical 35 W
IP Level: Front IP65
Dimensions (mm): 310.0 x 214.0 x 64.7 mm
Weight (Net): 3.5 kg
Mounting: Wall mount
Operating Temperature: -25 °C ~ 55 °C
Storage Temperature: -25 °C ~ 60 °C

Applications & Use Cases
Designed for passenger information systems, vehicle-mounted displays, digital signage, indoor/outdoor kiosks and vending machines where sunlight readability, robust front protection and industrial I/O are required. Suitable for deployment in transportation systems and public environments requiring fanless, low-power operation.

Technical Specifications

• Display type: 10.4" TFT LCD, 1024×768
• Backlight: 1000 nits LED, MTBF 100,000 hours
• Touch: PCAP touch capable (Projected Capacitive)
• Processor: Intel Atom x6413E (1.5/3.0 GHz, 9 W)
• Memory & Storage: 8 GB DDR4, 128 GB M.2 SSD
• Power input range: DC 9–36 V; typical system power consumption 35 W
• Front protection: IP65; rugged 10 mm P4 glass
• I/O connectors: USB 3.0, HDMI, M12 industrial connectors for LAN, audio, GPIO and COM
• Operating temp: -25 °C to 55 °C; Storage temp: -25 °C to 60 °C
• Dimensions: 310.0 × 214.0 × 64.7 mm; Weight: 3.5 kg
