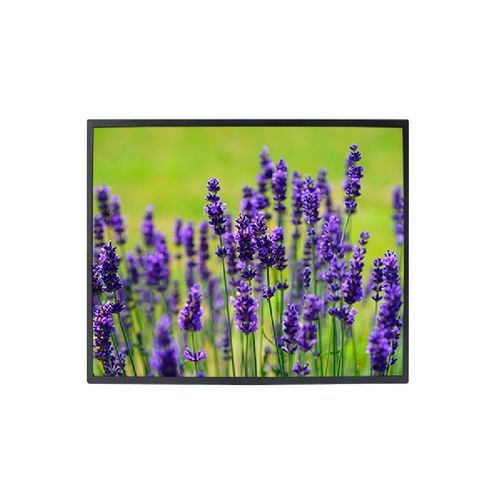

TFT-LCD monitor DLD1900-T

LED backlightindustrialoutdoor

Introduction
The DLD1900-T is a 19-inch industrial-grade sunlight-readable TFT LCD offering 2000 cd/m² brightness and 1280×1024 resolution. Durapixel LED backlight provides high reliability and low power consumption for outdoor signage, kiosks, factory automation, military, transportation and gaming applications. The display supports standard HDMI and DisplayPort inputs and a LVDS panel interface for integration into industrial systems.

Main features

• High brightness: 2000 cd/m² (sunlight readable)
• Resolution: 1280 × 1024 (5:4)
• Wide viewing angle: 176° (H) / 176° (V)
• LED backlight with Durapixel technology — backlight MTBF 100,000 hours
• Wide operating temperature range: -20°C to 70°C
• Low power consumption for continuous operation
• Input interfaces: HDMI, DisplayPort; panel interface: LVDS
• OSD controls: Power, Menu, +, - (Brightness, Color, Contrast, H/V Position, Auto Tuning)

Specification
Model Name: DLD1900-T
Description: 19" TFT LCD, LED Backlight 2000 cd/m², 1280×1024
Size: 19"
Display area (mm): 376.32 (H) x 301.056 (V)
Brightness: 2000 cd/m²
Resolution: 1280×1024
Aspect ratio: 5:4
Contrast ratio: TBD
Pixel pitch (mm): 0.294 (H) x 0.294 (V)
Pixel per inch (PPI): 86
Viewing angle: 176° (H), 176° (V)
Display colors: 16.7M
Response time (Typical): 25 ms
Panel interface: LVDS
Input interface: HDMI, DP
Input power: DC 12V
Power consumption: TBD
Dimensions (W x H x D mm): 396.00 x 326.01 x 36.0
Bezel size (U/B/L/R mm): 12.46 / 12.47 / 9.82 / 9.82
Weight (Net): 2.5 kg
OSD key: 4 keys (Power switch, Menu, +, -)
Operating temperature: -20°C ~ 70°C
Storage temperature: -30°C ~ 80°C

Technical specifications

• Model Name: DLD1900-T
• Display type: 19" TFT LCD
• Brightness: 2000 cd/m² (sunlight readable)
• Resolution: 1280 x 1024 (5:4)
• Viewing angle: 176° (H) / 176° (V)
• Backlight: LED (Durapixel technology) — BL MTBF 100,000 hours
• Panel interface: LVDS
• Input interface: HDMI, DisplayPort
• Input power: DC 12V
• Typical response time: 25 ms
• Display colors: 16.7 million
• Pixel pitch / PPI: 0.294 mm / 86 PPI
• Dimensions (W x H x D): 396.00 x 326.01 x 36.0 mm
• Net weight: 2.5 kg
• Bezel sizes (U/B/L/R): 12.46 / 12.47 / 9.82 / 9.82 mm
• Operating temperature range: -20°C to 70°C
• Storage temperature range: -30°C to 80°C
• Key OSD functions: Power, Menu, +, - (Brightness, Color, Contrast, Auto Tuning, H/V Position)
