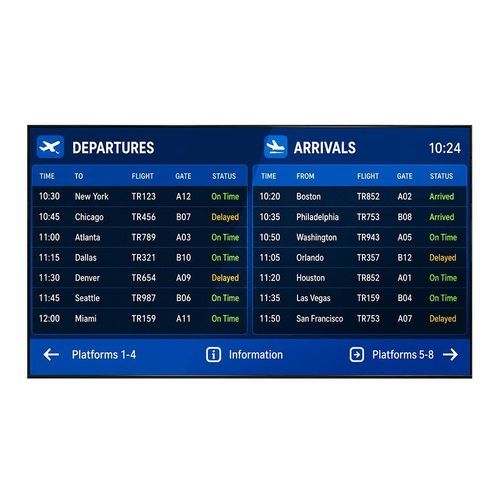

TFT-LCD monitor UPO1002-M

LED backlightfor digital signagefor vehicles

Product Overview
The UPO1002-M is a 100-inch industrial-grade LCD display with 400 cd/m² brightness, delivering sharp images, clear text and accurate colors. Ubipixel LED backlight technology provides high reliability and reduced power consumption. Built for indoor installations such as kiosks, factory automation, military systems, transportation displays and simulation/gaming environments.

Main features

• Brightness: 400 cd/m² (400 nits)
• Resolution: 3840 x 2160 (4K)
• LED backlight (Ubipixel)
• Aspect ratio: 16:9
• Low power consumption: 360W

Technical specifications

• Model name: UPO1002-M
• Description: 100” TFT LCD, 400 cd/m² LED backlight, 3840 x 2160
• Display area (mm): 2203.2 (W) x 1239.3 (H)
• Brightness: 400 cd/m²
• Resolution: 3840 x 2160
• Aspect ratio: 16:9
• Contrast ratio: 5000:1
• Pixel pitch (mm): 0.57375 x 0.57375
• PPI: 44
• Viewing angle: 178° (H) / 178° (V)
• Color saturation (NTSC): 72%
• Display colors: 1.07B
• Response time (typical): 8 ms
• Onboard interfaces: HDMI x1; HDMI ARC x1; USB 3.0 x1; USB 2.0 x1; RJ45 x1; Earphone x1
• Input power: AC 100–240V
• Power consumption: 360W
• Dimensions (W x H x D): 2227.4 x 1270.65 x 87 mm
• Weight (net): 50 kg
• Mounting: 800 x 400 mm
• Operating temperature: 0 °C to 40 °C
• Storage temperature: -20 °C to 60 °C
