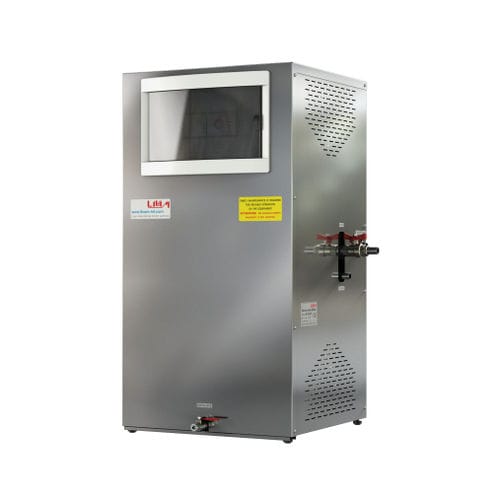

Water distiller АЕ series

automatic

Assignment - distilled water production; Special features - Nodes and parts being in contact with steam and distilled water are made of AISI 321 stainless steel and other materials which do not affect the quality of product water. - Built-in storage tank, capacity - 20 l - Bactericidal air filter in a built-in storage tank. - Built-in control unit. - Source water supply tube and distillate drain tube are included into the kit. - Distillation unit switches off and source water supply disrupts automatically when storage tank is full. - Automatic shutdown of the distillation unit in the absence of water. - Protective panels protect personnel from contact with hot parts and have decorative purpose. - Distillate cooler can be connected to obtain distillate with a temperature below 40 °C. The cooler is purchased separately and built-in at the manufacturing plant. - Level of water in the distiller fed for evaporation is maintained automatically. Assignmentdistilled water production Capacity, l/h 10 Capacity of built-in tank 20 l Electrical conductivity of product water 2.0-2.2 µs/cm Quality of product water Type III Product water temperature, °С from 70 to 85 Current type, frequency, voltage three-phase AC, 50 Hz, 380 V Power consumption 7.2 kVA Source water consumption, l/h (at water t from 10 to 12 °С at pressure from 0.2 to 0.4 MPa) 75 Source water pressure, MPa 0.1 – 0.4 Dimensions (LxWxH), mm 425×425×775 Type of mountingDesktop mounting with adjustable legs. Wall mounting is possible. Weight with control unit, kg22,8
