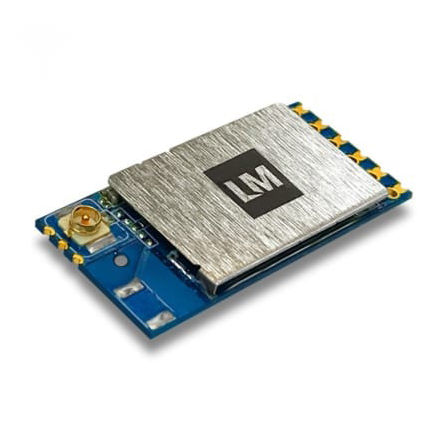

WiFi module LM823

WiFi 802.11 b/g/n Operates in 2.4 GHz Frequency bands IPEX receptical Plug and Play (Linux, macOS X, Windows 10 IoT Core, Windows XP to 10 and Windows Compact Embedded 6/7 compatible) Up to 150Mbps Data Transfer Rate 802.11e-compatible bursting and I standards BPSK, QPSK, 16 QAM and 64 QAM modulation schemes WEP, TKIP, and AES, WPA and WPA2 encryption schemes Fully-featured software utility for easy configuration and management Factory options DC power input 3.3V or 5V WPS or PDN control function on half-hole pin 6 Supports LED functions when choosing the WPS option Onboard Antenna Option This module is also offered with an Onboard Antenna (See LM822). Features WiFi 802.11 b/g/n Operates in 2.4 GHz Frequency bands IPEX receptical Plug and Play (Linux, macOS X, Windows 10 IoT Core, Windows XP to 10 and Windows Compact Embedded 6/7 compatible) Up to 150Mbps Data Transfer Rate 802.11e-compatible bursting and I standards BPSK, QPSK, 16 QAM and 64 QAM modulation schemes WEP, TKIP, and AES, WPA and WPA2 encryption schemes Fully-featured software utility for easy configuration and management
