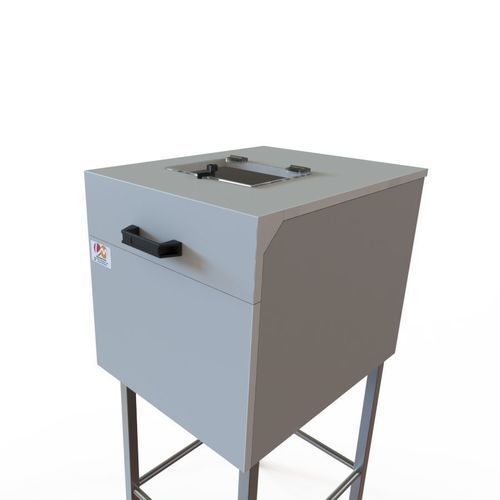

Floor-standing enclosure IL

wall-mountrectangularsteel

Product Overview
The IL/AL range of enclosures represents the ultimate protection solution for laser printers operating in demanding environments. Designed to combine robustness, ergonomics, and performance, this range is available in two specialized versions to precisely meet the requirements of your industry. Access to the printer for changing consumables is facilitated by a hinged front panel, while the top cover, assisted by pneumatic cylinders, ensures safe handling of the equipment. The snap-fit closure and sealing gaskets provide optimal protection under all circumstances.

Strengths

• Optimal and permanent protection: An ergonomic cell designed to durably protect your laser printers from shocks, dust and liquids.
• Environment-specific design:
  • IL range (Industry): Offers guaranteed dustproof sealing thanks to filtered suction vents.
  • AL range (Food processing): Ensures certified IP65 sealing (closed doors) and maximum hygiene with smooth walls without retention corners to prevent any microbial development.
• Maximum ergonomics: Access to equipment and consumables is simplified for quick and efficient maintenance.
• Sustainable commitment: The industrial version is made from 80% recycled and 100% recyclable materials, combining performance and respect for the environment.

Options or variations

• IL (Industrial) range:
  • Steel base with optional 4 wheels (2 of which have brakes).
  • Simple light or with guide for automatic label output.
  • Ventilation system (ECA), lock, KDL cable gland without cutting and pressure regulator.
• AL range (Food processing):
  • Stainless steel base or wall bracket, with optional 4 wheels for the base.
  • Removable tablet for printer and/or mouse.
  • Ventilation system (ECA) with IP65 deflector or thermostatic resistance (RCA).
  • Access hatch, IP65 waterproof inspection window, lock, monitor bracket and KDL cable pass-through.

Features
Structure
IL Series (Industrial): Thermoformed thermoplastic body and 10 mm thick painted composite walls (RAL 9005)
AL Series (Food Industry): 19 mm thick composite cell, colored throughout, with smooth walls
Protection
IL Series: Dust-tight sealing. Two air intake vents with filters
AL Series: IP65 sealing (doors closed). Hygienic design
Cover
IL Series: 6 mm transparent PMMA, mounted on polyamide hinges
AL Series: Choice: 10 mm opaque PVC or 6 mm transparent PMMA
Front Access
Both: Thermoformed thermoplastic drop-down panel, mounted on piano hinge and closed with two latch hooks
Cable Glands
IL Series: 80 mm diameter on rear face
AL Series: Cable gland system

Dimensions
Modèle | Dimensions Intérieures (L x P x H mm) | Dimensions Extérieures (L x P x H mm)
IL 16 | 410 x 530 x 430 | 530 x 645 x 500
IL 20 | 510 x 625 x 525 | 630 x 745 x 600
IL 30 | 610 x 525 x 525 | 730 x 645 x 600
AL 16 | 435 x 520 x 430 | 500 x 670 x 500
AL 20 | 515 x 595 x 530 | 580 x 750 x 600
AL 30 | 635 x 510 x 530 | 700 x 670 x 600

Technical Specifications

• Two specialized versions: IL (Industrial) and AL (Food Industry)
• Robust, ergonomic, and high-performance design
• Hinged front panel for easy access
• Pneumatic cylinder-assisted top cover
• Snap-fit closure and sealing gaskets
• Filtered suction vents (IL)
• Certified IP65 sealing (AL)
• Made from recycled and recyclable materials (IL)
• Multiple options for bases, ventilation, and accessories
