Product Overview

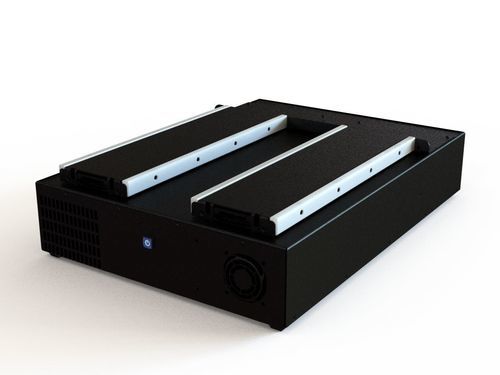

The Modular Lithium Autonomous Power Cabinet ensures a continuous 24/7 power supply with a durability of up to 1000 charge cycles. This modular power cabinet is designed to provide uninterrupted power for critical equipment, combining modularity, robustness, and autonomy.

Strengths

• Unlimited autonomous power thanks to individually rechargeable batteries, ensuring continuous operation.
• Uninterrupted 24/7, 7 days a week operation, ideal for powering PCs, printers, terminals, or screens.
• Robust, lightweight, compact, and secure cabinet with electronic safety devices protecting battery life.
• Smart, automatic battery pack management with clear LED display of charge status.
• Modular power cabinet with plug-in, interchangeable conversion boards ranging from 350W to 1500W.
• Batteries certified for all transport modes (air, land, sea) with a maximum charge time of 6 hours.

Features

• Battery capacity: 10Ah (250Wh) and 20Ah (500Wh), 24VDC voltage.
• Operating temperature range: -5°C to 35°C.
• Power cabinet with multiple outputs: 5V, 12V, 19V, 24V banana connectors, and/or 230V AC.
• On/off button, integrated fan, USB output for charge detection, RJ socket for remote display.
• Rackable batteries, always ready for use, with safety device preventing discharge.
• Warranty:
  • Power cabinet: 2 years (parts and labor)
  • Batteries: 3 years or 1000 cycles

Options and Variations

• Remote display indicating remaining autonomy based on the number of installed batteries.
• Additional conversion cards can be added to adapt outputs.
• Accessories: Slides and specific mounting brackets for the modular energy cabinet.
• Extended warranty and cable modifications available.
• 220V to 24V adaptation available.

Technical Specifications

• Continuous 24/7 power supply
• Durability: up to 1000 charge cycles
• Battery capacity: 10Ah (250Wh) and 20Ah (500Wh)
• Voltage: 24VDC
• Operating temperature: -5°C to 35°C
• Outputs: 5V, 12V, 19V, 24V banana connectors, 230V AC
• Plug-in conversion boards: 350W to 1500W
• Maximum charge time: 6 hours
• Certified for air, land, and sea transport
• Warranty: Cabinet 2 years, Batteries 3 years or 1000 cycles
